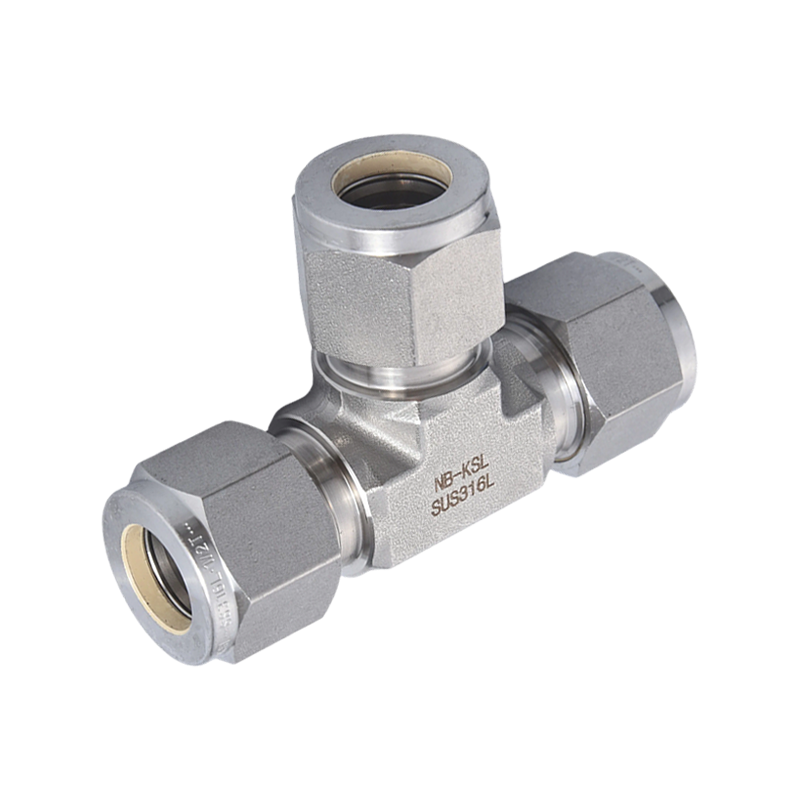

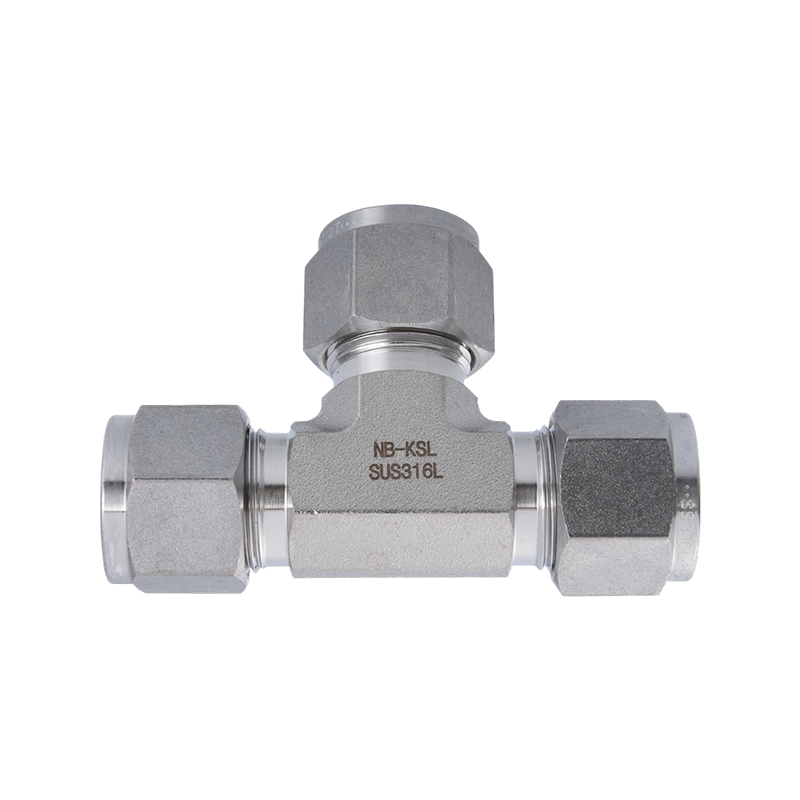

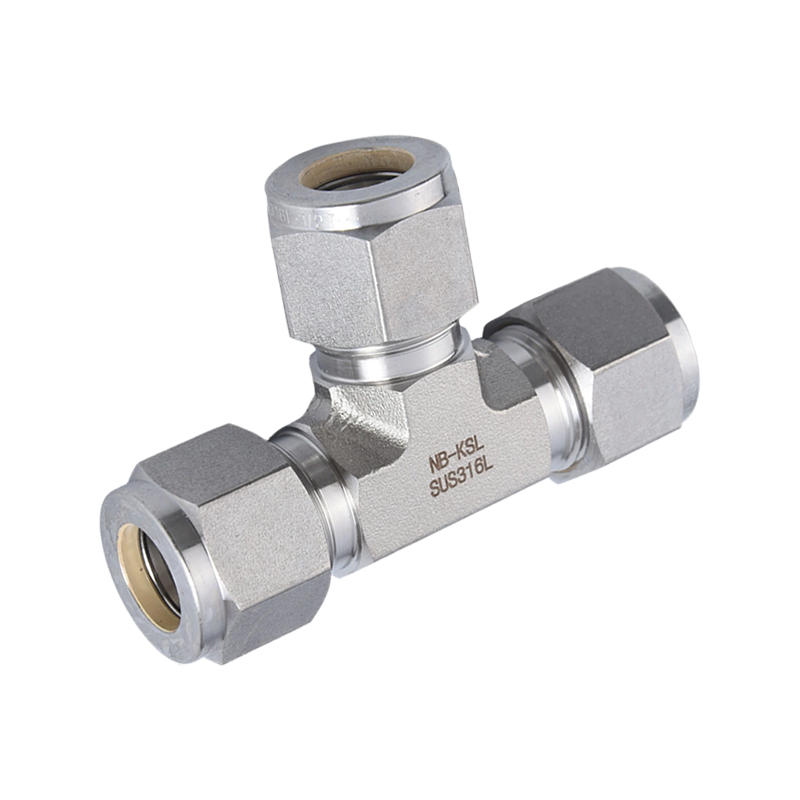

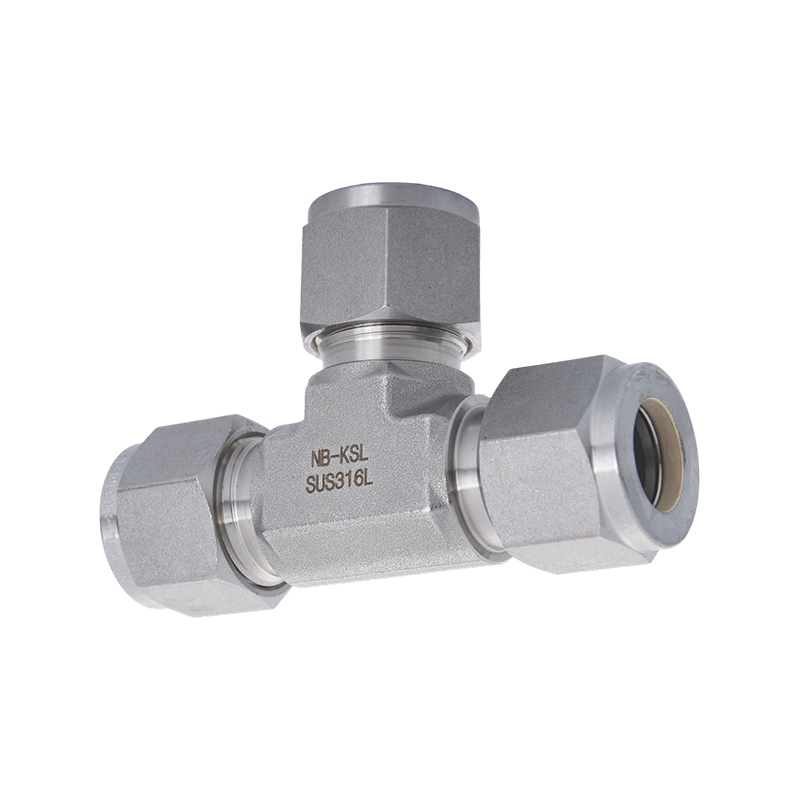

316L ステンレス鋼圧縮継手ティー

316L ステンレス鋼圧縮ユニオン ティー: 高圧システム向けの精密分岐
1-in-2-out または 2-in-1-out の流体構成向けに設計されたこのユニオン ティーは、すべての接続ポイントで気密性を維持しながら、バランスの取れた圧力分散を保証します。

核となる価値提案
障害物のないフロー設計: 精密鍛造 316L ステンレス鋼で作られており、内部の流路は滑らかで対称的です。これにより、流体分岐時の乱流と圧力降下が最小限に抑えられ、一貫した下流圧力が確保されます。
トリプル シーリングの信頼性: ダブルフェルール メカニカル グリップ テクノロジーにより、3 つのポートすべてで独立した安定した金属間シールが形成され、最大 6000 psi の高圧インパルスに簡単に対応できます。
極限環境耐性: 低炭素 316L 材料は、孔食や硫化物応力腐食に対する固有の耐性を備えているため、水素エネルギー、オフショア エンジニアリング、ファインケミカル用途にとって信頼できる選択肢となります。
かじり防止エンジニアリング: ナットは精密なねじ山を備えており、多くの場合、ねじのかじりを防ぐために銀メッキ (内部) が施されています。これにより、大量組み立て時の安定したトルクと取り付けの容易さが保証されます。

  • 説明
  • お問い合わせ

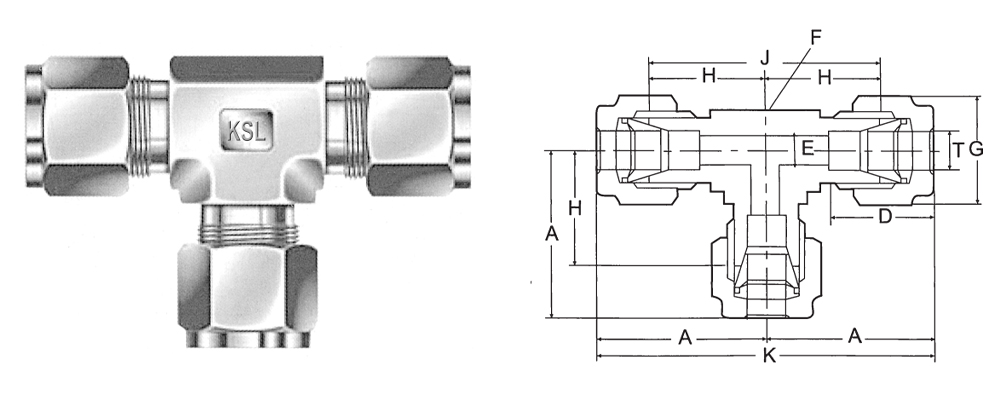

(メートル法)

カタログ番号

チューブ外径

A

D

E

F

G

H

J

K

UT-3-0

3

22.7

13.5

2.4

9.5

12

15.7

31.4

45.4

UT-4-0

4

25.7

13.7

3

12.7

12

19

38

51.4

UT-6-0

6

27.4

15.8

4.8

12.7

14

19.6

392

54.8

UT-8-0

8

30.1

16.7

6

16

16

22.4

44.8

60.2

UT-10-0

10

31.5

19.6

7.9

17.5

19

23.9

47.8

63

UT-12-0

12

36.7

23.8

9.5

19

22

25.9

51.8

73.4

UT-14-0

14

38.8

24.8

11.1

24

27

28

56

77.6

UT-15-0

15

38.4

24.4

11.9

24

27

28

56

76.8

UT-16-0

16

38.4

24.4

12.7

24

27

28

56

76.8

UT-18-0

18

39.3

24.8

15.1

28

30

28.5

57

78.6

UT-20-0

20

44

25.5

15.9

32

32

33.5

67

88

UT-22-0

22

44

25.5

18.3

32

32

33.5

67

88

UT-25-0

25

47.7

31.7

21.8

34.5

38

35

70

95.4


(分数)

UT-01-0

1/8

23.2

14

2.4

9.5

12

15.7

31.4

46.4

UT-02-0

1/4

27.4

15.8

4.8

12.7

14

19.6

392

54.8

UT-03-0

3/8

30.7

19.6

7.1

16

17

23.1

462

61.4

UT-04-0

1/2

36.1

23.4

10.4

19

22

25.9

52

72.2

UT-05-0

5/8

38.4

24.4

12.7

24

27

28

56

76.8

UT-06-0

3/4

38.9

24.4

15.7

28

30

28.5

57

77.8

UT-08-0

1"

47.7

31.7

22.4

34.5

38

35

70

95.4
