316L ステンレス鋼圧縮継手雌ねじ分岐ティー

ホーム / 製品 / ステンレス鋼管継手 / チューブから雌管へ / 316L ステンレス鋼圧縮継手雌ねじ分岐ティー

316L ステンレス鋼圧縮継手雌ねじ分岐ティー

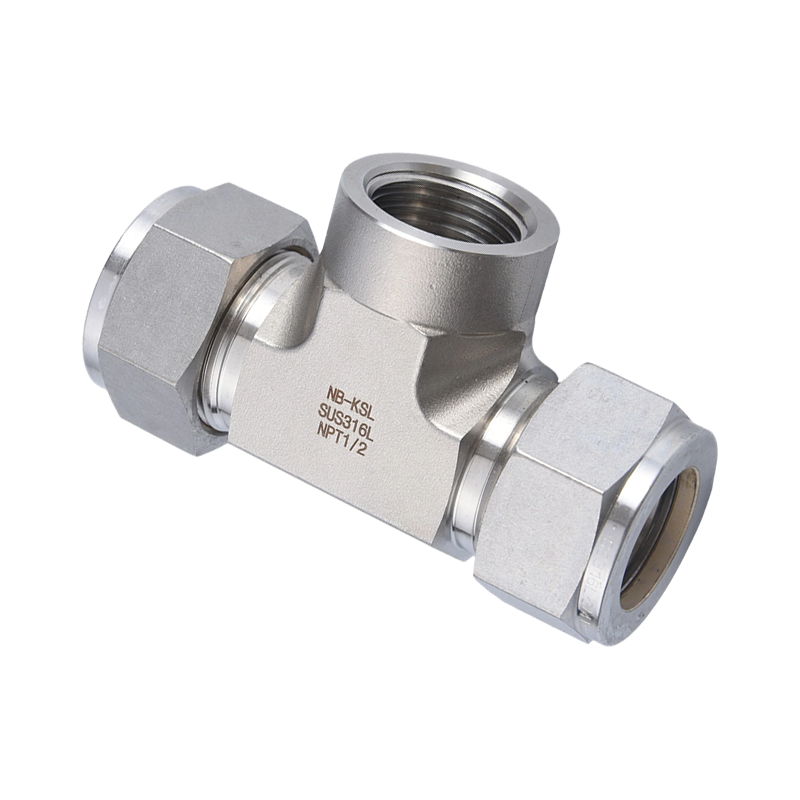

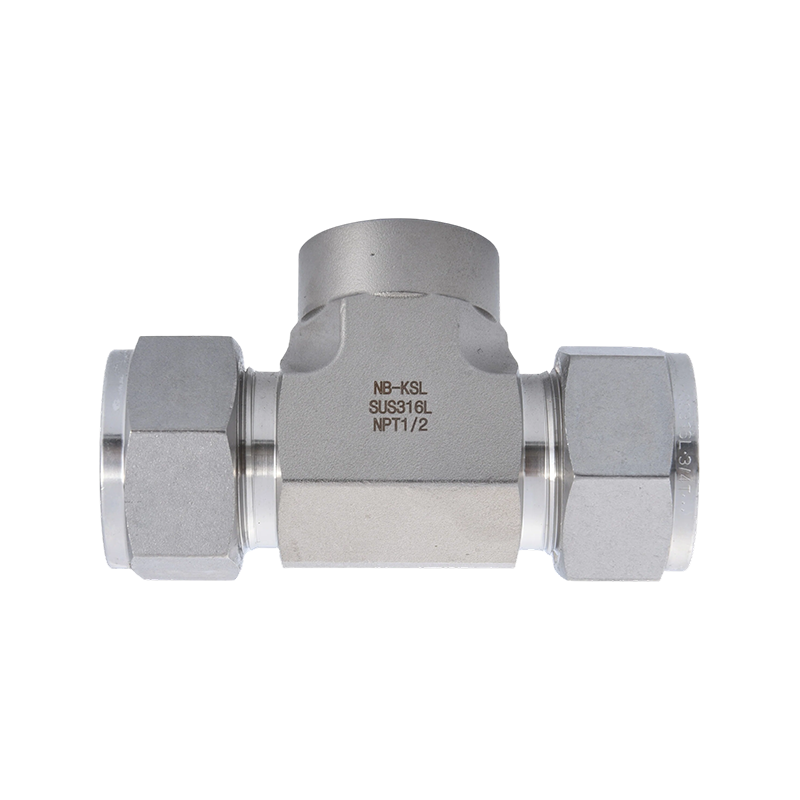

316L ステンレス鋼製圧縮継手雌ねじ分岐ティーは、3 本のパイプを接続するために使用される管継手です。その構造は通常、T 字型の設計で、メイン パイプが直線接続され、分岐パイプの端が雌ネジ インターフェイスを使用しているため、雄ネジ付き継手や計装機器に直接接続できます。ティーボディは一体鍛造または精密機械加工により製造されており、内部流路が滑らかで均一となり、流体抵抗と圧力損失の低減に貢献します。主な構造には、2 つの直線端と 1 つの雌ねじ付き分岐端が含まれます。この製品は、最大 6000 psi の作動圧力で、1/8 インチから 2 インチ (3mm ~ 50mm) のパイプ直径に適しています。ねじ規格には、NPT、BSPT、BSPP、ISO シリーズなどがあります。シールは金属ハードシールで、気体、液体、蒸気、腐食性流体、高純度媒体を輸送できます。

  • 説明
  • お問い合わせ

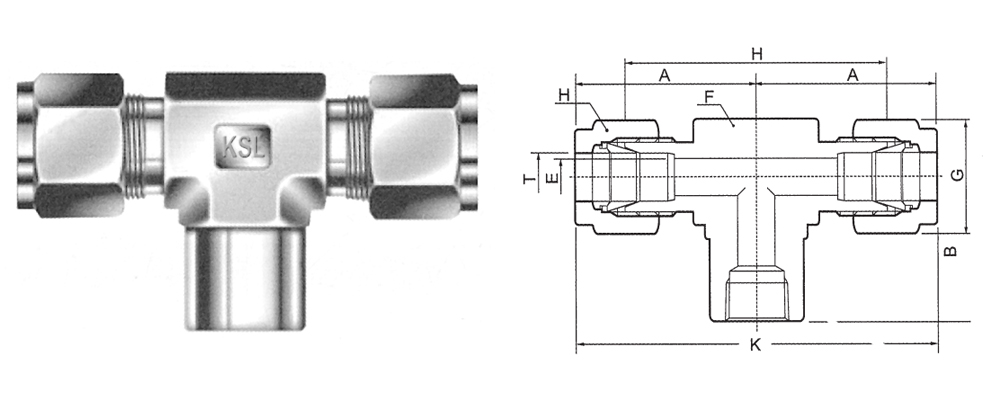

女性ブランチ T シャツ

(メートル法)

カタログ番号

Tチューブ外径

PT-NPT 雄管サイズ

A

B

D

E

F

G

H

K

FBT-6-1

6

1/8

22.4

22.4

15.8

4.8

16

14

44.8

60.4

FBT-6-2

6

1/4

22.4

22.4

15.8

4.8

17.5

14

44.8

60.4

FBT-6-3

6

3/8

23.3

22.4

15.8

4.8

21

14

46.6

62.2

FBT-6-4

6

1/2

26.5

30

15.8

4.8

28

14

53

68.6

FBT-8-1

8

1/8

22.4

22.4

16.7

6.4

16

16

44.8

60.2

FBT-8-2

8

1/4

22.4

22.4

16.7

6.4

17.5

16

44.8

60.2

FBT-8-3

8

3/8

24.3

22.4

16.7

6.4

21

16

48.6

64

FBT-8-4

8

1/2

27.5

30

16.7

6.4

28

16

55

70.4

FBT-10-1

10

1/8

23.9

22.4

19.6

7.9

17.5

19

47.8

63

FBT-10-2

10

1/4

23.9

22.4

19.6

7.9

17.5

19

47.8

63

FBT-10-3

10

3/8

25.3

22.4

19.6

7.9

21

19

50.6

65.8

FBT-10-4

10

1/2

28.5

30

19.6

7.9

28

19

58

73.2

FBT-12-1

12

1/8

25.9

22.4

23.8

9.5

19

22

51.8

73.4

FBT-12-2

12

1/4

25.9

22.4

23.8

9.5

19

22

51.8

73.4

FBT-12-3

12

3/8

25.3

22.4

23.8

9.5

21

22

50.6

72.2

FBT-12-4

12

1/2

28.5

30

23.8

9.5

28

22

51.8

73.4

FBT-12-6

12

3/4

32.5

33

23.8

9.5

32

22

65

86.6

FBT-14-3

14

3/8

28

27

24.8

11.1

24

27

56

77.6

FBT-14-4

14

1/2

28.5

30

24.8

11.1

28

27

57

78.6

FBT-14-6

14

3/4

32.5

33

24.8

11.1

32

27

65

86.6

FBT-15-3

15

3/8

28

27

24.4

11.9

24

27

56

76.8

FBT-15-4

15

1/2

28.5

30

24.4

11.9

28

27

57

77.8

FBT-15-6

15

3/4

32.5

33

24.4

11.9

32

27

65

85.8

FBT-16-3

16

3/8

28

27

24.4

12.7

24

27

56

76.8

FBT-16-4

16

1/2

28.5

30

24.4

12.7

28

27

57

77.8

FBT-16-6

16

3/4

32.5

33

24.4

12.7

32

27

65

85.8

FBT-18-3

18

3/8

28.5

27

24.8

15.1

28

30

57

78.6

FBT-18-4

18

1/2

28.5

30

24.8

15.1

28

30

57

78.6

FBT-18-6

18

3/4

32.5

33

24.8

15.1

32

30

65

86.6

FBT-20-4

20

1/2

33.5

33

25.5

15.9

32

32

67

88

FBT-20-6

20

3/4

33.5

33

25.5

15.9

32

32

67

88

FBT-22-4

22

1/2

33.5

33

25.5

18.3

32

32

67

88

FBT-22-6

22

3/4

33.5

33

25.5

18.3

32

32

67

88

FBT-25-4

25

1/2

35

35

31.7

21.8

34.5

38

70

95.4

FBT-25-6

25

3/4

35

35

31.7

21.8

34.5

38

70

95.4


(分数)

FBT-02-1

1/4

1/8

22.4

22.4

15.8

4.8

16

14

44.8

60.4

FBT-02-2

1/4

1/4

22.4

22.4

15.8

4.8

17.5

14

44.8

60.4

FBT-02-3

1/4

3/8

23.3

22.4

15.8

4.8

21

14

46.6

62.2

FBT-02-4

1/4

1/2

26.5

30

15.8

4.8

28

14

53

68.6

FBT-03-1

3/8

1/8

23.1

22.4

19.6

7.1

16

17

46.2

61.4

FBT-03-2

3/8

1/4

23.9

22.4

19.6

7.1

17.5

17

47.8

63

FBT-03-3

3/8

3/8

25.3

22.4

19.6

7.1

21

17

50.6

65.8

FBT-03-4

3/8

1/2

28.5

30

19.6

7.1

28

17

57

72.2

FBT-04-1

1/2

1/8

25.9

22.4

23.4

10.4

19

22

51.8

72.2

FBT-04-2

1/2

1/4

25.9

22.4

23.4

10.4

19

22

51.8

72.2

FBT-04-3

1/2

3/8

25.3

22.4

23.4

10.4

21

22

50.6

71

FBT-04-4

1/2

1/2

28.5

30

23.4

10.4

28

22

57

77.4

FBT-06-3

3/4

3/8

28.5

27

24.4

15.7

28

30

56

76.8

FBT-06-4

3/4

1/2

28.5

30

24.4

15.7

28

30

56

76.8

FBT-06-6

3/4

3/4

32.5

33

24.4

15.7

32

30

65

85.8

FBT-08-6

1"

3/4

35

35

31.7

22.4

34.5

38

70

95.4

特に指定のない限り、すべての寸法はミリメートル単位です。参照用のみであり、変更される可能性があります。
