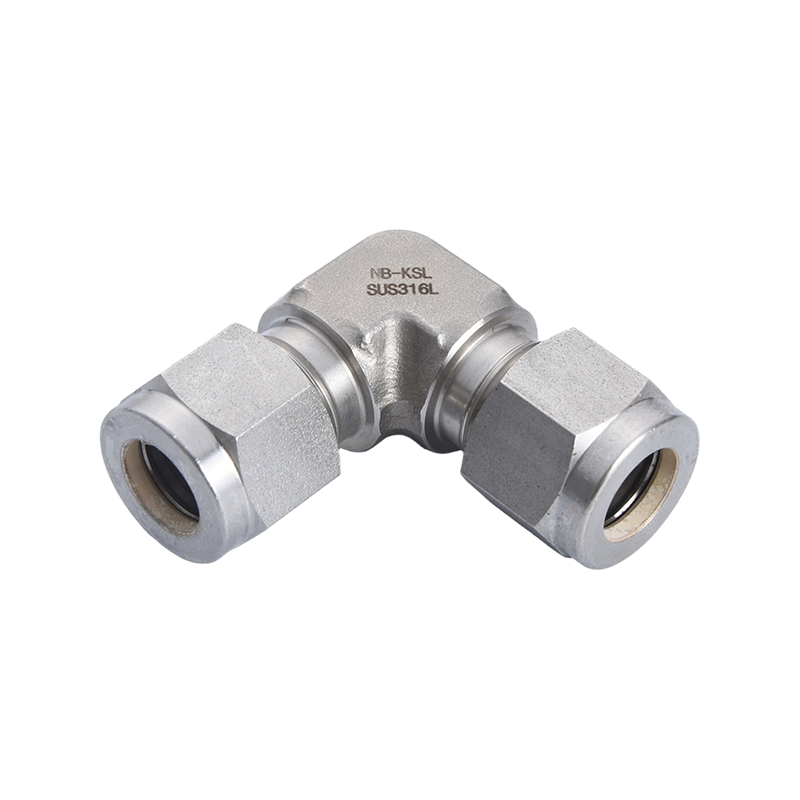

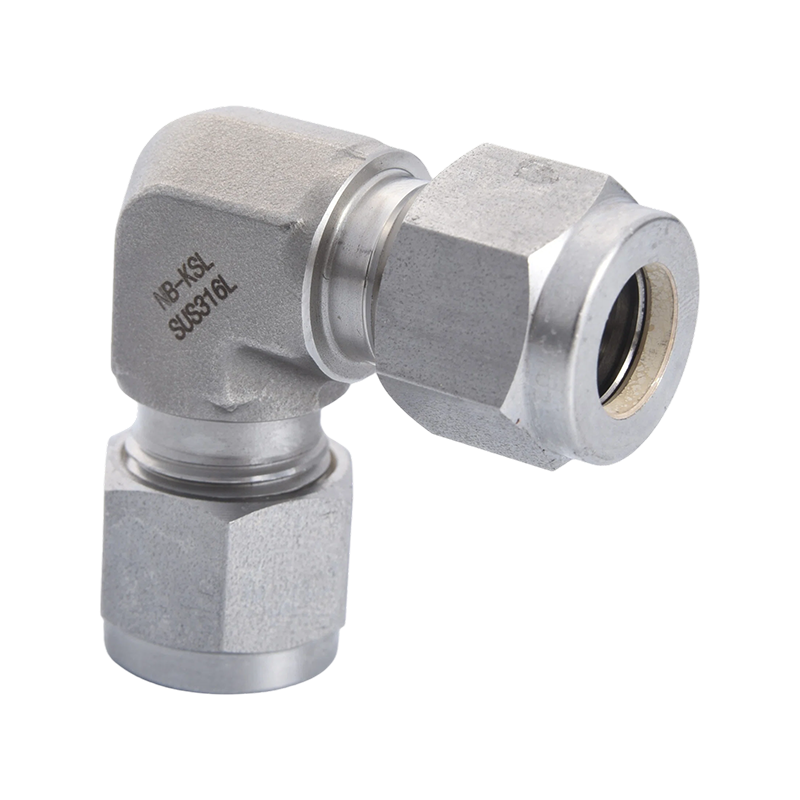

316L ステンレス鋼圧縮継手エルボ

複雑な配管レイアウトでは、多くの場合、90 度の曲がりが圧力変動と流れ抵抗が最も集中する場所になります。当社の 316L ステンレス鋼ダブルフェルール エルボは、この課題に対処するために特別に設計されています。これは単なる方向性コネクタではありません。これは、システムの安全境界の堅牢な拡張です。

この肘を選ぶ理由
精密鍛造ボディ: ローエンドの溶接代替品とは異なり、この製品は 316L 精密鍛造プロセスを使用して製造されています。これにより、溶接に伴う応力集中のリスクが排除されます。最適化された内部流路により、媒体がターンを通過する際の圧力降下が最小限に抑えられます。
究極の材料純度: 超低炭素 316L グレードは、最高レベルの耐食性を提供します。酸性ガス、海洋塩噴霧、または攻撃的な半導体プロセスガスに長期間さらされた場合でも、構造の完全性を維持します。
強力なシール性能: ダブルフェルールの機械的ロック構造を利用し、締め付け中にフェルールがチューブ表面に正確に係合し、気密な金属間シールを形成します。超高圧 (最大 6000 psi) や極端な熱サイクル下でも優れた安定性を発揮します。
空間レイアウトの効率: コンパクトな設計により、限られたエンクロージャまたはコントロール パネル内にチューブを正確に取り付けることができ、システム レイアウトの美しさとプロフェッショナルな状態を維持できます。

  • 説明
  • お問い合わせ

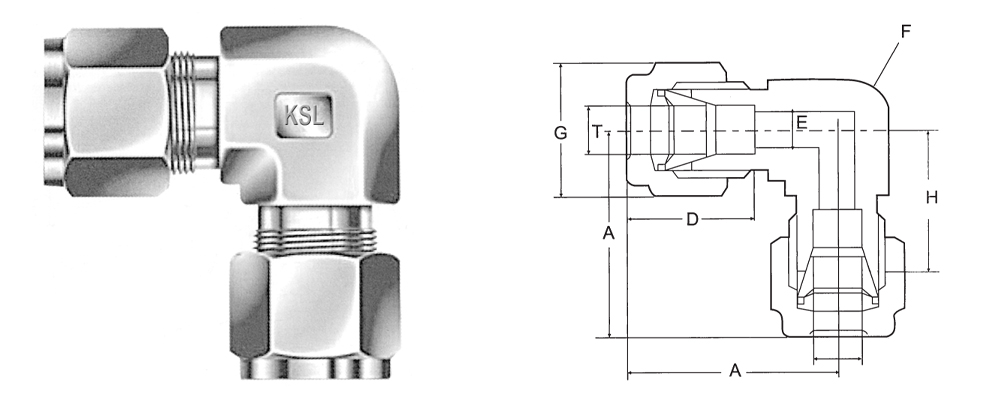

(メートル法)

カタログ番号

チューブ外径

A

D

E

F

G

H

UE-3-0

3

23.5

13.5

2.4

9.5

12

16.5

UE-4-0

4

25.8

13.7

3

12.7

12

19.1

UE-6-0

6

27.8

15.8

4.8

12.7

14

20

UE-8-0

8

28.7

16.7

6.4

15

16

21

UE-10-0

10

31.6

19.6

7.9

17

19

24

UE-12-0

12

36.7

23.8

9.5

21

22

25.9

UE-14-0

14

38.8

24.8

11.1

24

27

28

UE-15-0

15

38.4

24.4

11.9

24

27

28

UE-16-0

16

38.4

24.4

12.7

24

27

28

UE-18-0

18

39.3

24.8

15.1

28

30

28.5

UE-20-0

20

43

25.5

15.9

32

32

32.5

UE-22-0

22

43

25.5

18.3

32

32

32.5

UE-25-0

25

47.7

31.7

21.8

34.5

38

35


(分数)

UE-01-0

1/8

24

14

2.4

9.5

12

16.5

UE-02-0

1/4

27.4

15.8

4.8

12.7

14

19.6

UE-03-0

3/8

30.7

19.6

7.1

17

17

23.1

UE-04-0

1/2

36.3

23.4

10.4

21

22

25.9

UE-05-0

5/8

38.4

24.4

12.7

24

27

28

UE-06-0

3/4

38.9

24.4

15.7

28

30

28.5

UE-08-0

1"

47.7

31.7

22.4

34.5

38

35
