316L ステンレス鋼圧縮継手減速機ストレート コネクタ

ホーム / 製品 / ステンレス鋼管継手 / チューブとユニオン / 316L ステンレス鋼圧縮継手減速機ストレート コネクタ

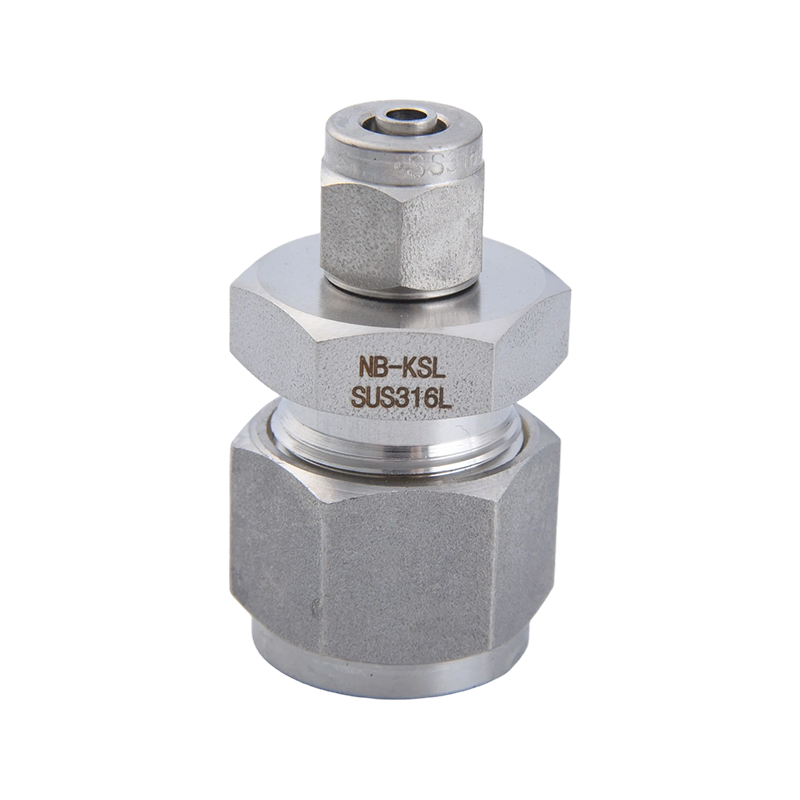

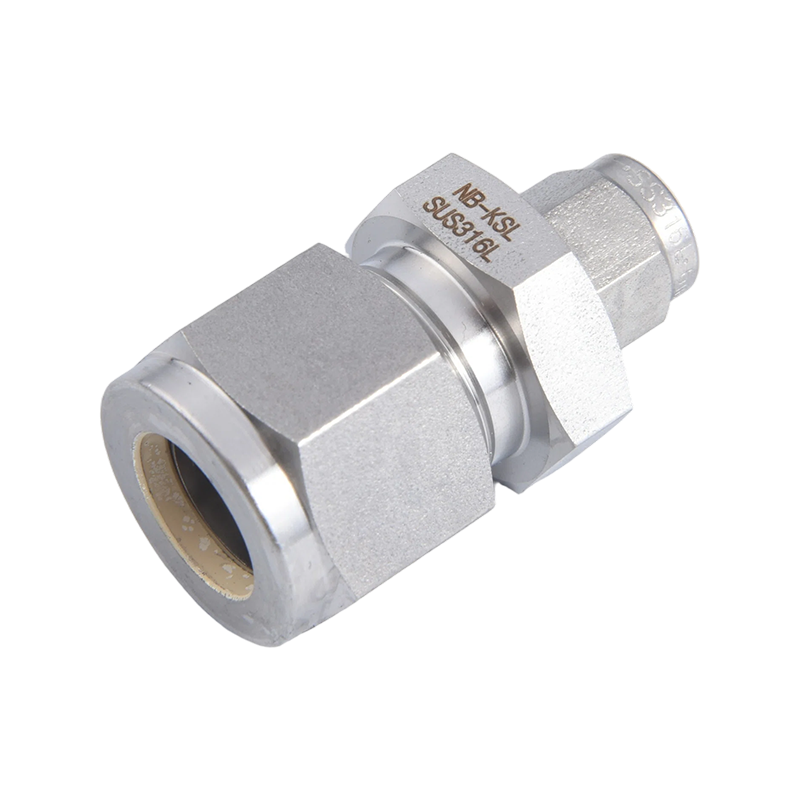

316L ステンレス鋼圧縮継手減速機ストレート コネクタ

この高性能テーパー ストレート コネクタは、高圧、高純度、極度の腐食環境向けに設計されています。高品質の 316L 低炭素ステンレス鋼で製造されており、異なるパイプ径 (メートルまたはフラクショナル) 間で信頼性の高い流体システム接続を提供し、極端な動作条件下でも漏れがゼロであることを保証します。

製品の主な利点:
優れた材料性能: 316L ステンレス鋼で作られており、標準の 304 または 316 と比較して炭素含有量が低いため、溶接中または高温環境での粒界腐食を効果的に抑制します。優れた耐孔食性により、海洋、化学、半導体産業に最適です。
デュアルフェルールシーリングテクノロジー: クラシックなデュアルフェルール設計を利用して、バックフェルールが強力なサポートを提供し、フロントフェルールが完璧な金属間のシールを形成します。この構造は、非常に高い振動に耐え、重大な熱サイクル中に気密性を維持できます。
精密テーパー接続: 直径の異なる 2 つのパイプを接続するように特別に設計されており、流体の移行を最適化し、パイプ継手の数を減らし、システムのルーティングを簡素化し、圧力損失を低減します。
簡単で繰り返し可能な取り付け: 溶接、ねじ切り、フレア加工は必要ありません。取り付けはレンチ1本で完了し、シール面を傷めることなく複数回の分解・組立に対応します。

代表的な応用分野:
石油とガス: 計器パネルの接続と海洋プラットフォームの腐食環境。
半導体製造: 超高純度ガス供給システム (VHP)。
実験室および分析機器: ガスクロマトグラフ、サンプリング システム。
水素エネルギー産業: 高圧水素パイプライン接続。

  • 説明
  • お問い合わせ

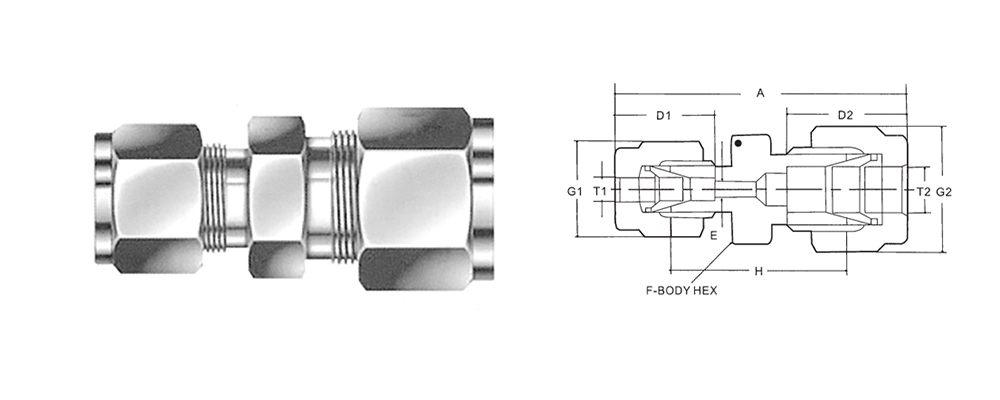

(メートル法)

チューブ外径カタログ

T1

T2

番号

A

D1

D2

E

G1

G2

F

H

3

6

RU-3-6

40

13.5

15.8

2.4

12

14

14

25.2

4

6

RU4-6

40.2

13.7

15.8

3

12

14

14

25.4

6

8

RU-6-8

42.9

15.8

16.7

4.8

14

16

16

27.4

6

10

RU-6-10

44.9

15.8

19.6

4.8

14

19

17

29.5

6

12

RU-6-12

48.1

15.8

23.8

4.8

14

22

19

29.5

8

10

RU-8-10

45.3

16.7

19.6

6.4

16

19

17

30

8

12

RU-8-12

48.7

16.7

23.8

6.4

16

22

19

30.2

10

12

RU-10-12

49.4

19.6

23.8

7.9

19

22

19

31

12

16

RU-12-16

52.8

23.8

24.3

9.5

22

27

24

31.8

12

18

RU-12-18

54.8

23.8

24.8

9.5

22

27

27

33.3

18

25

RU-18-25

60.6

22.8

24.8

15.1

30

38

35

38.1

20

25

RU-20-25

63.1

25.5

31.7

15.9

32

38

35

39.9


(分数)

チューブ外径

T1

インチ mm

T2

カタログ番号

A

D1

D2

E

G1

G2

F

H

3

1/8

RU-3-01

36.9

13.5

14

2.4

12

12

12

22.4

4

1/8

RU-401

37.6

13.7

14

2.4

12

12

12

23.4

4

1/4

RU-402

39.9

13.7

15.8

3

12

14

14

25.4

6

1/8

RU-6-01

41

15.8

14

2.4

12

14

14

25.2

6

1/4

RU-6-02

41.8

15.8

15.8

4.8

14

14

14

26.2

8

1/4

RU-8-02

42.9

16.7

15.8

4.8

14

16

14

27.4

10

1/8

RU-10-01

44.1

19.6

14

2.4

12

19

17

28.5

10

1/4

RU-10-02

44.9

19.6

15.8

4.8

14

19

17

29.5

10

3/8

RU-10-03

46.2

19.6

19.6

7.1

17

19

17

31

12

3/8

RU-12-03

49.4

23.8

19.6

7.1

17

22

22

31

12

1/2

RU-12-04

52

23.8

23.4

9.5

22

22

22

31

18

3/4

RU-18-06

54.5

24.8

24.4

15.1

30

30

27

33.3

20

3/4

RU-20-06

55.7

25.5

24.4

15.7

32

30

30

34.8

20

1"

RU-20-08

63.1

25.5

31.7

15.9

32

38

35

39.9

22

1"

RU-22-08

63.1

25.5

31.7

18.3

32

38

35

39.9
