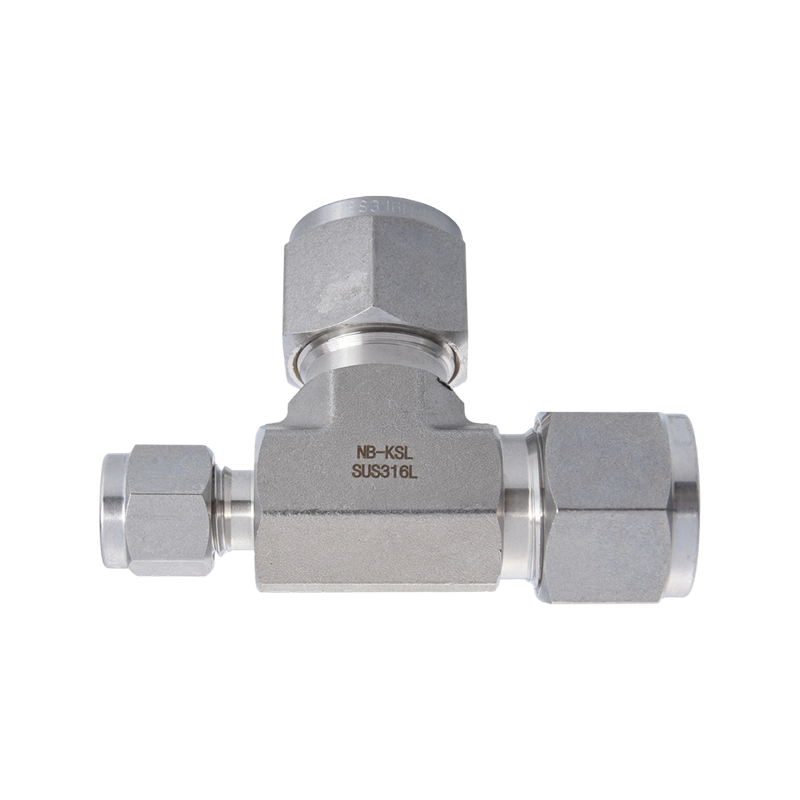

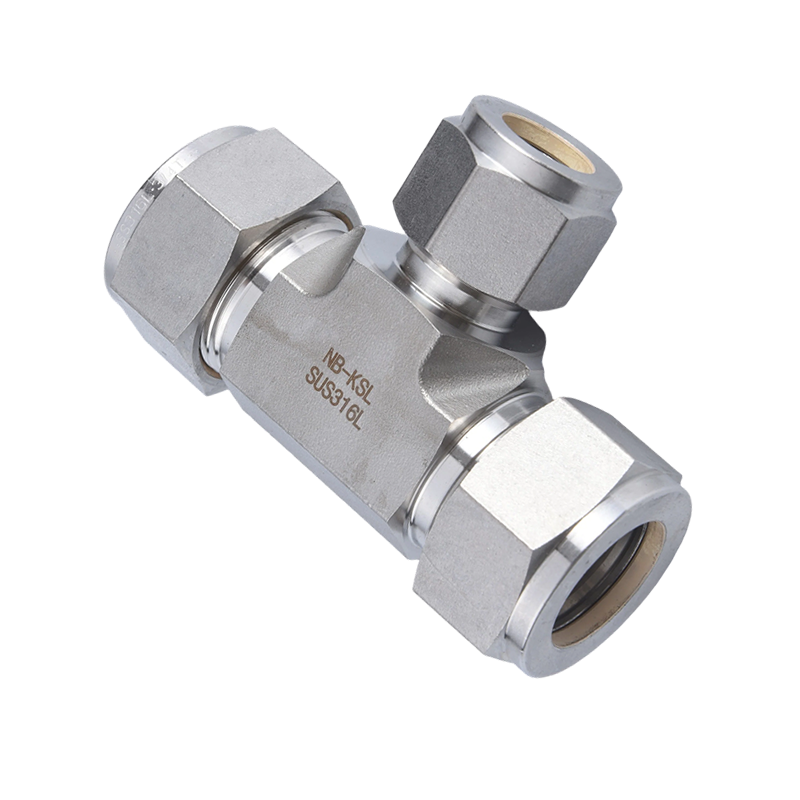

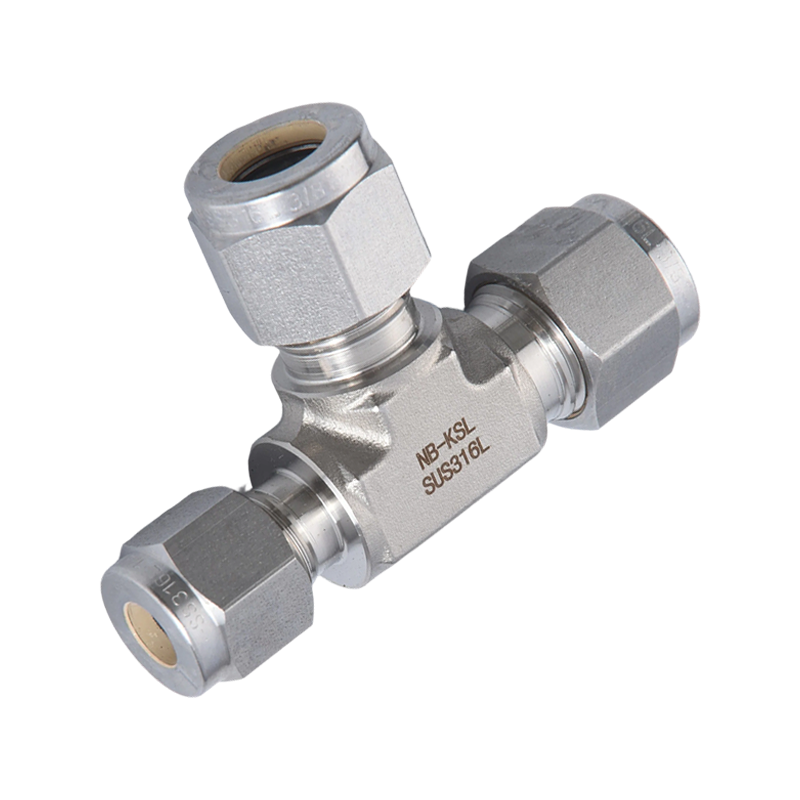

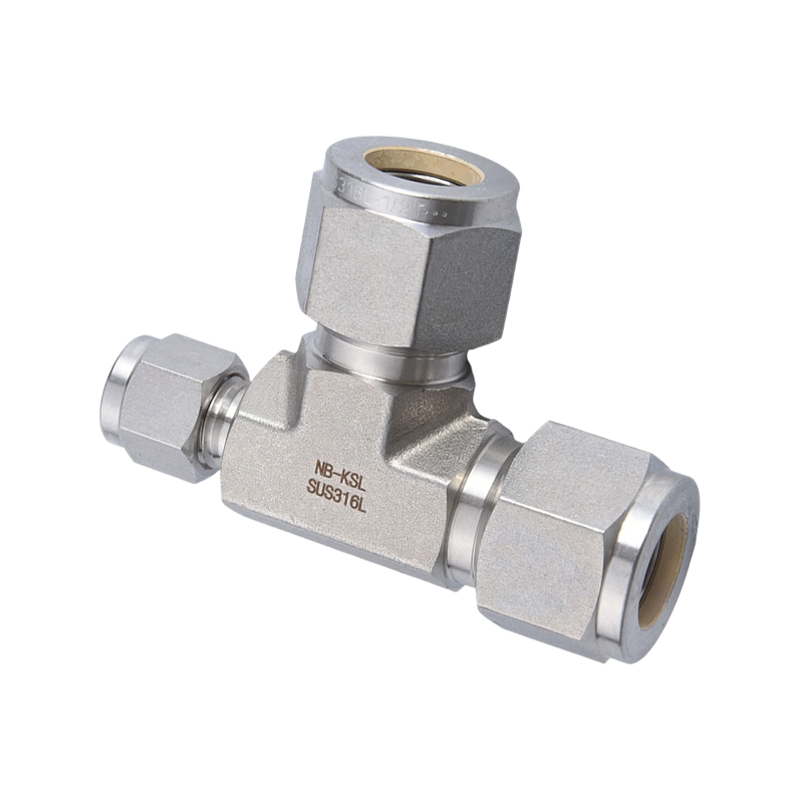

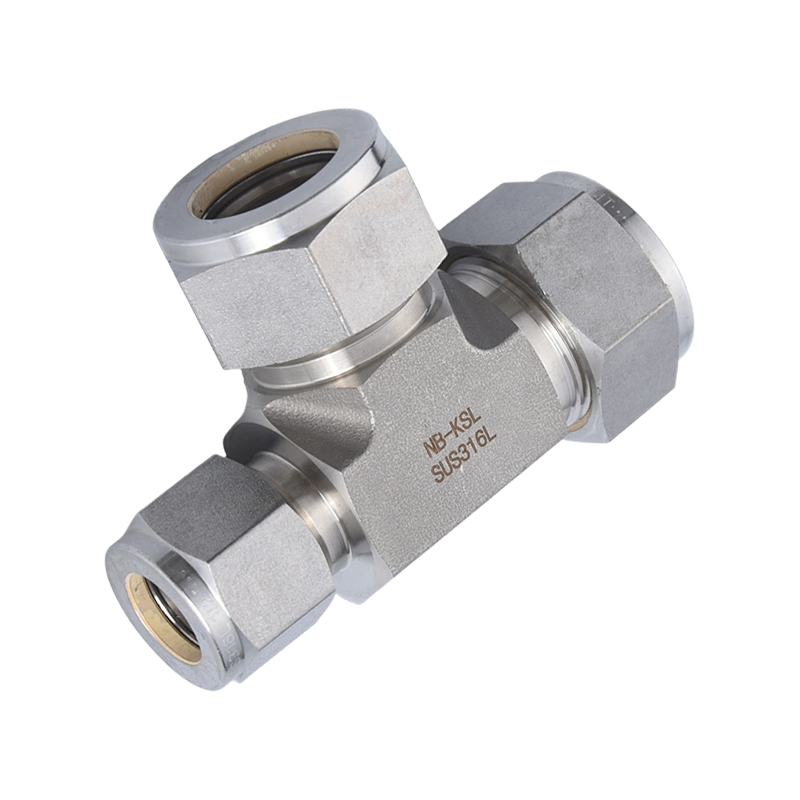

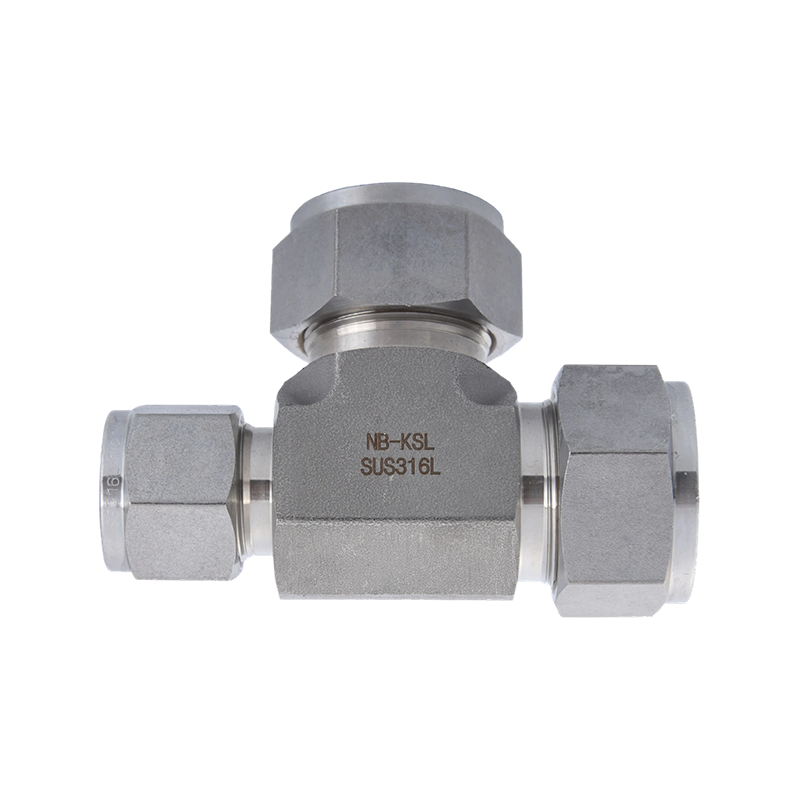

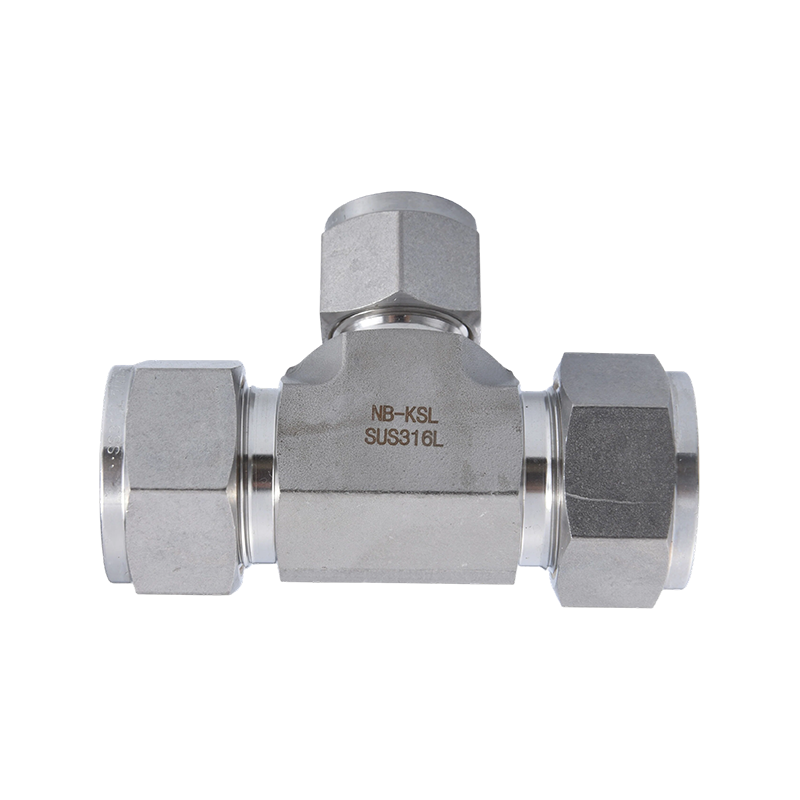

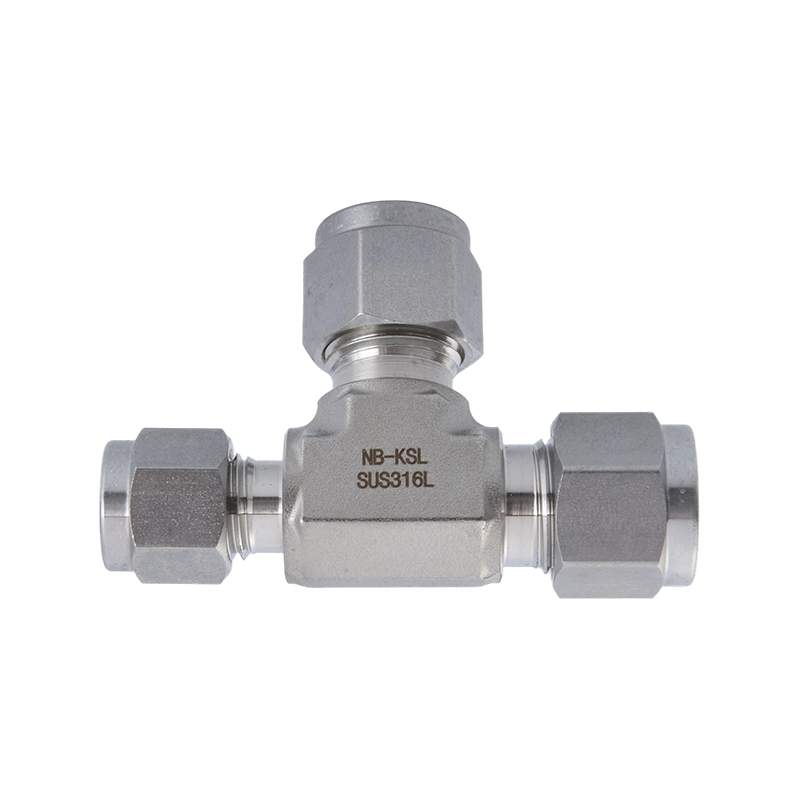

316L ステンレス鋼圧縮継手レジューシング ティー

複雑な工業用流体システムでは、316L ステンレス鋼製圧縮低減ユニオン ティーは、幹線と支線の間の効率的な接続にとって重要なコンポーネントです。方向性の流れとチューブのサイズ縮小を 1 つの継手に統合することで、必要な接続の数が大幅に削減されます。これにより設置スペースが最適化され、潜在的な漏れ箇所のリスクが根本的に軽減されます。

製品の主な利点

高性能 316L 素材保証:
高品質の 316L (ASTM A276 または A479) 低炭素ステンレス鋼から製造されています。優れた耐孔食性と優れた化学的安定性により、酸性環境、海洋大気、高純度プロセスにおいて長寿命が保証されます。
ダブルフェルール機械的ロック技術:
古典的なダブルフェルール設計を利用して、フロントフェルールが漏れのない金属シールを形成し、バックフェルールがチューブに強力なグリップを提供します。この構造は、還元接続に典型的な非対称の圧力負荷下でも、最大 6000 psig まで気密安定性を維持します。

流体力学の最適化:
継手本体は精密鍛造であり、内部の流れの移行がスムーズです。この設計により、直径変化点での乱流と圧力損失が最小限に抑えられ、プロセスパラメータの正確な制御が保証されます。

過酷な環境への適応性:
振動、周期的圧力、極端な温度に対する厳格なテストにより、この継手は摂氏マイナス 196 度から 649 度の範囲の熱サイクルに耐えることができます。水素エネルギー、半導体、石油化学計装システムに最適です。

  • 説明
  • お問い合わせ

(メートル法)

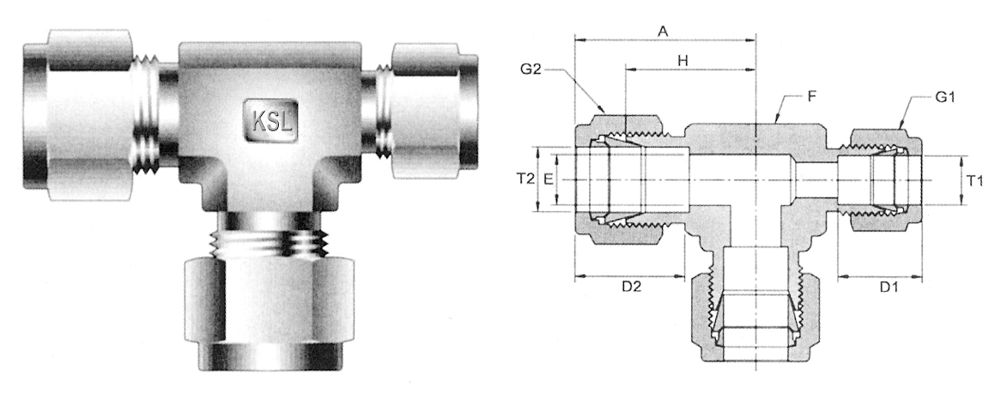

カタログ

外径

チューブ

番号

T2

T1。

A

D1

D2

E1

E2

F

G1

G2

H1

H2

RUBT-03-02

3/8

1/4

30.7

19.6

15.8

7.1

4.8

16

14

17

23.1

21.1

RUBT-04-02

1/2

1/4

36.2

23.4

15.8

10.4

4.8

19

14

22

26

24

RUBT-04-03

1/2

3/8

36.2

23.4

19.6

10.4

7.1

19

17

22

26

26

RUBT-06-03

3/4

3/8

38.4

24.4

19.6

15.7

7.1

28

30

17

28

28

RUBT-06-04

3/4

12

38.4

24.4

23.4

15.7

10.4

28

22

30

28

28

RUBT-08-03

1"

3/8

47.7

31.7

19.6

22.4

7.1

34.5

17

38

35

32.7

RUBT-08-04

1"

1/2

47.7

31.7

23.4

22.4

10.4

34.5

22

38

35

32.7

RUBT-08-06

1"

3/4

47.7

31.7

24.4

22.4

15.7

34.5

38

30

35

32.7
