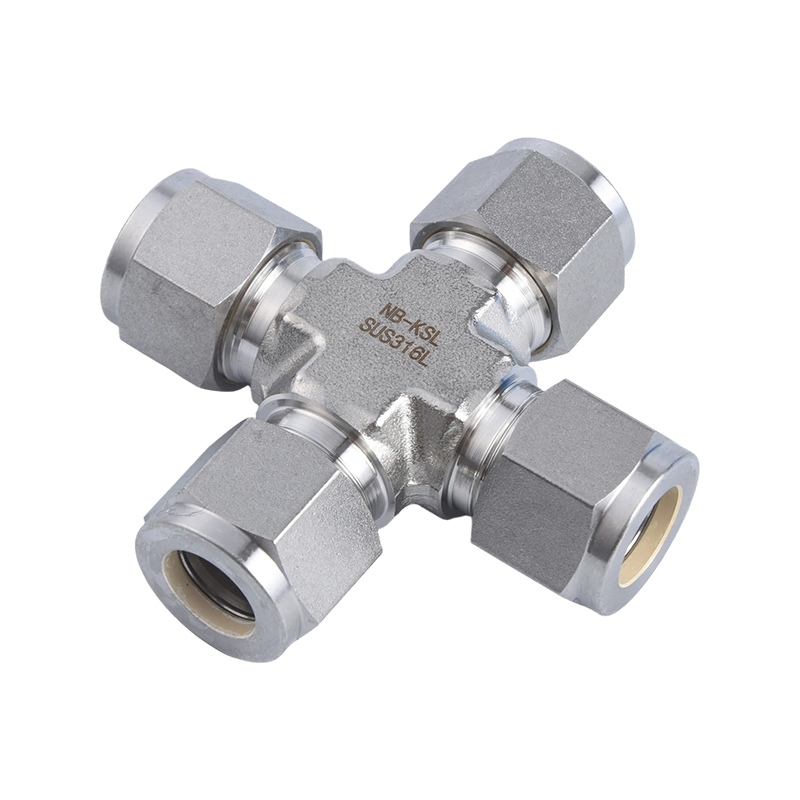

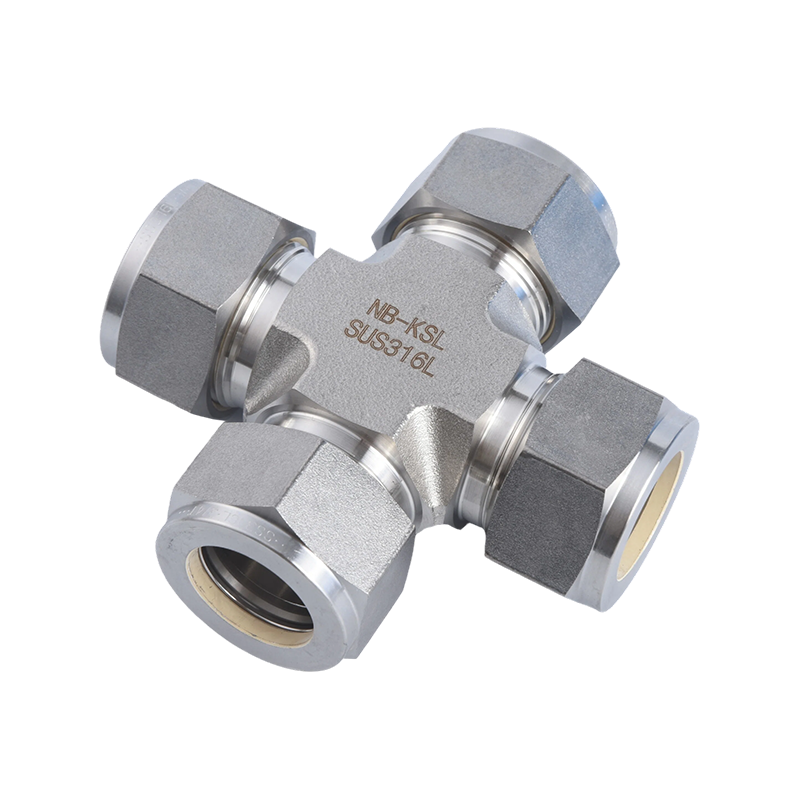

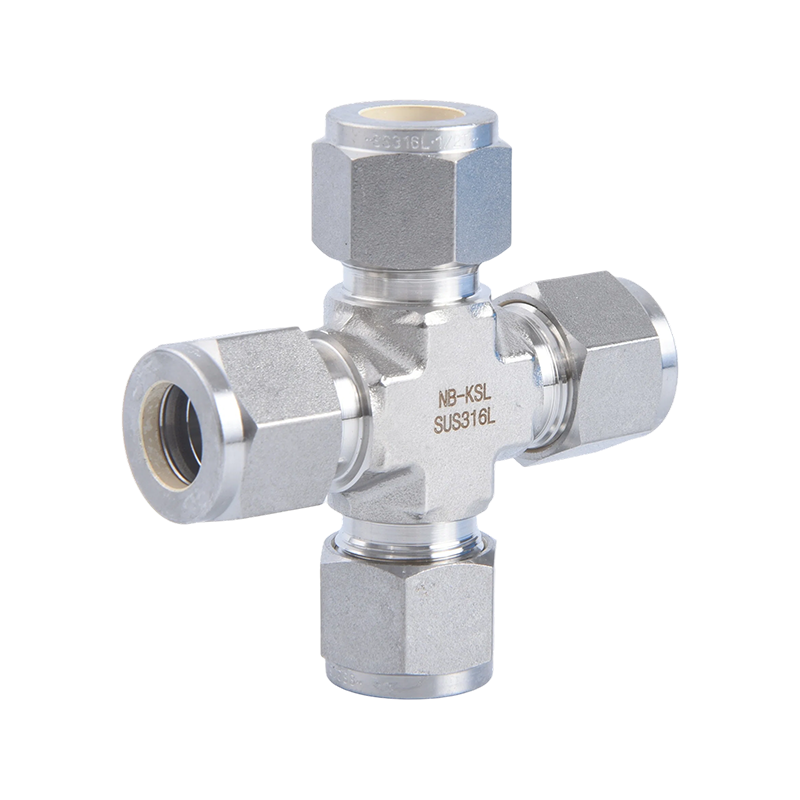

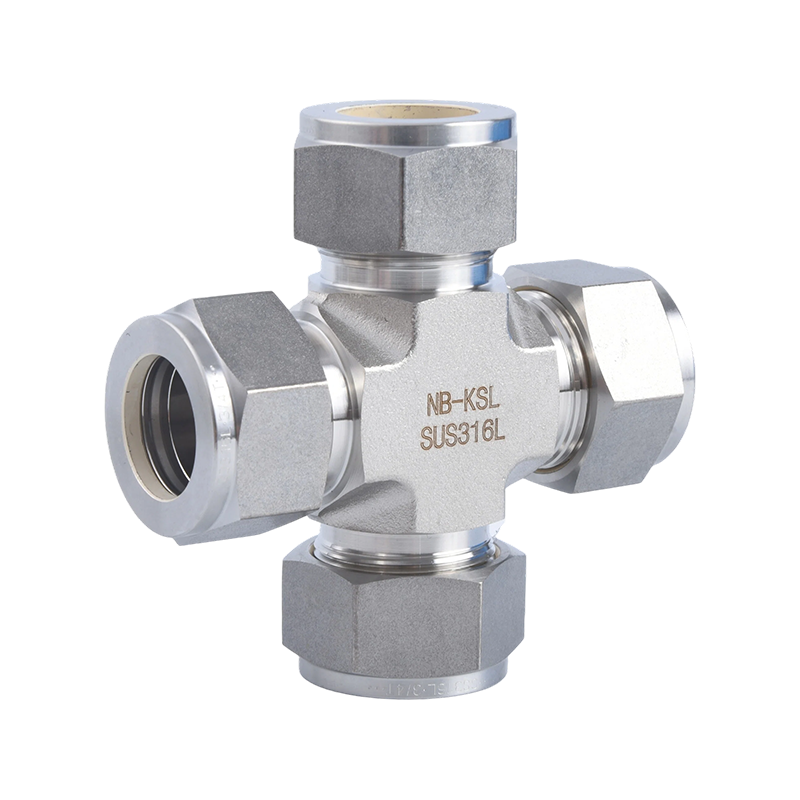

316L ステンレス鋼圧縮フィッティング 4 方向コネクタ

複雑な配管および制御システムでは、316L ステンレス鋼の圧縮ユニオン クロスは、多方向の流体の分配または収束のための重要な接合部として機能します。単一のコンポーネントを介して 4 方向の流体連通を可能にすることで、スペース要件と潜在的な漏れポイントを最小限に抑えながら、システムの統合を大幅に強化します。

製品の主な利点

一体型精密鍛造構造:
高強度 316L ステンレス鋼から頑丈な鍛造プロセスで製造されています。溶接コンポーネントと比較して、一体型鍛造ボディは優れた構造的完全性と機械的強度を提供し、高圧パルスや外部の機械的応力に効果的に耐えます。

究極の耐食性:
超低炭素 316L 材料は、さまざまな酸性またはアルカリ性媒体および塩水噴霧環境に対して優れた耐性を備えています。優れた化学的安定性により、石油化学や海洋エンジニアリングなどの過酷な環境に最適です。

高信頼性ダブルフェルールシール:
クラシックなダブルフェルール設計により、4 つのポートすべてで金属間の気密シールが形成されます。この独自の機械的ロック方法により、連続的な振動、激しい圧力変動、極端な高温から低温のサイクル下でも漏れのない性能が保証されます。

対称流路設計:
精密な内部機械加工により、4 つの流路すべてが完全に対称であることが保証されます。これにより、流体分岐における乱流と圧力損失が最小限に抑えられ、正確な機器パラメータのフィードバックのための安定した流体環境が提供されます。

  • 説明
  • お問い合わせ

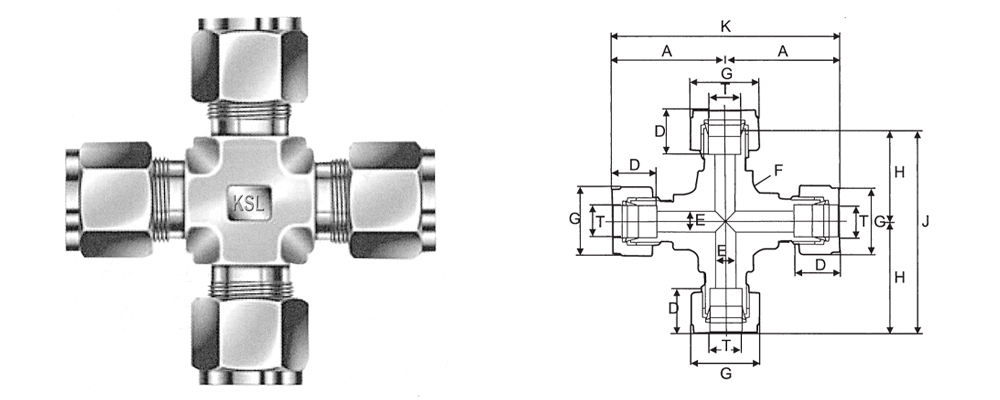

(メートル法)

カタログ番号

チューブ外径(mm)

A

D

E

F

G

H

J

K

UCR-3-0

3

26

13.5

2.4

12.7

12

19

38

52

UCR-4-0

4

26.7

13.7

3

12.7

12

20

40

53.4

UCR-6-0

6

28.8

15.8

4.8

12.7

14

21

42

57.6

UCR-8-0

8

28.7

16.7

6

12.7

16

21

42

57.4

UCR-10-0

10

31.6

19.6

7.9

17.5

19

24

48

63.2

UCR-12-0

12

36.8

23.8

9.5

20.6

22

26

52

73.6

UCR-16-0

16

38.4

24.4

12.7

24

27

28

56

76.8

UCR-18-0

18

39.3

24.8

15.1

28

30

28.5

57

78.6

UCR-20-0

20

44.5

25.5

15.9

34.5

32

34

68

89

UCR-25-0

25

47.7

31.7

21.8

34.5

38

35

70

95.4
