316L ステンレス鋼 BV 直角バルブ

ホーム / 製品 / ステンレス製ボールバルブ / 316L ステンレス鋼 BV 直角バルブ

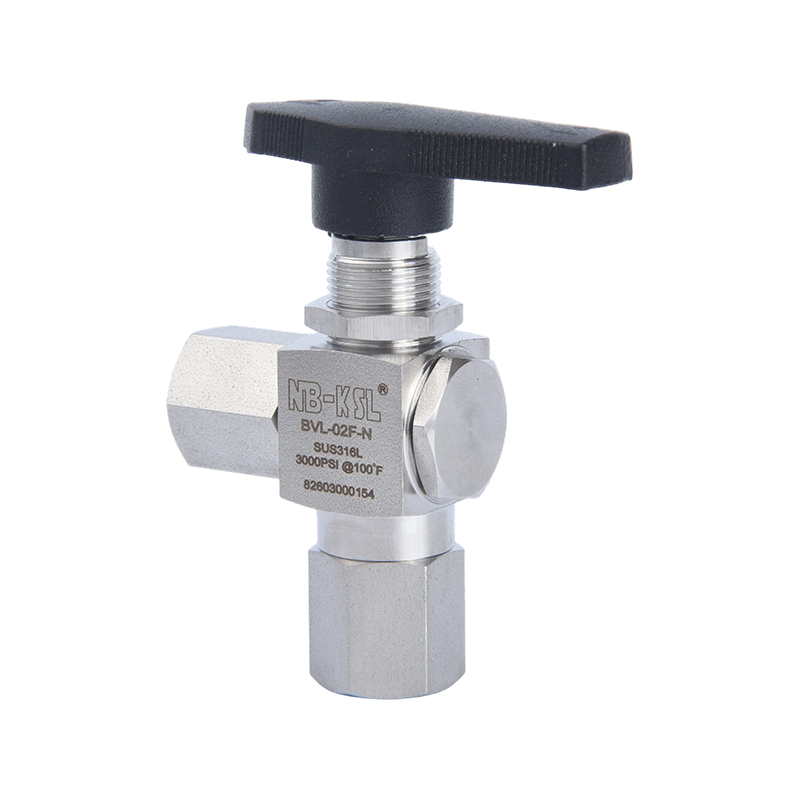

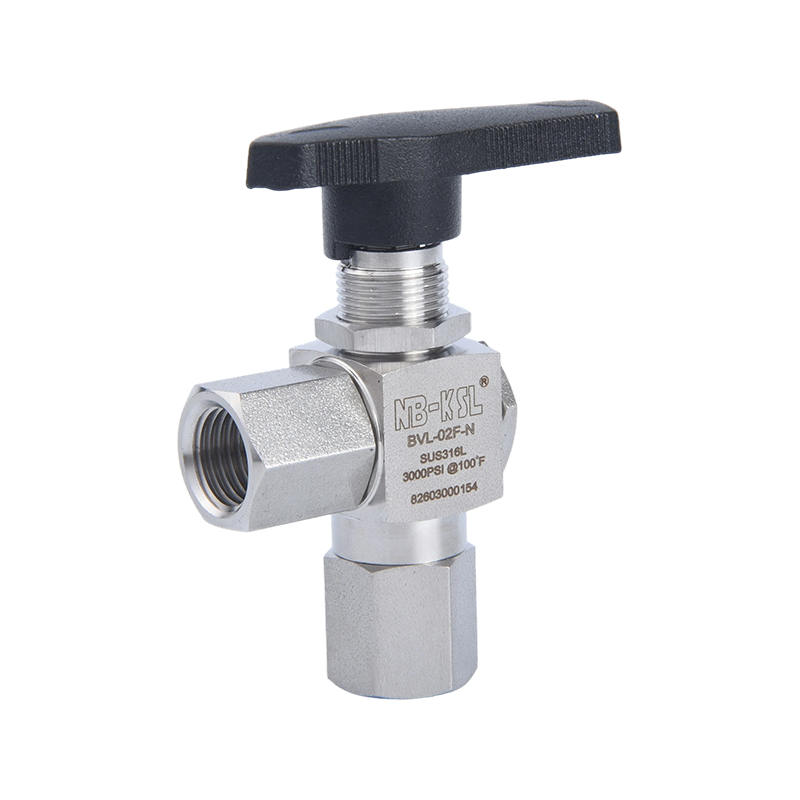

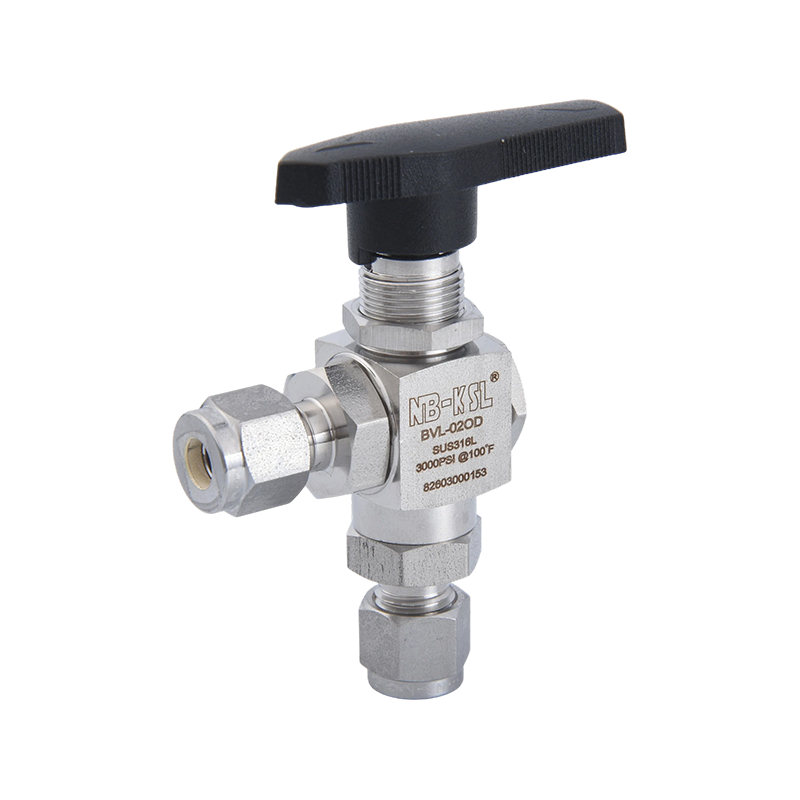

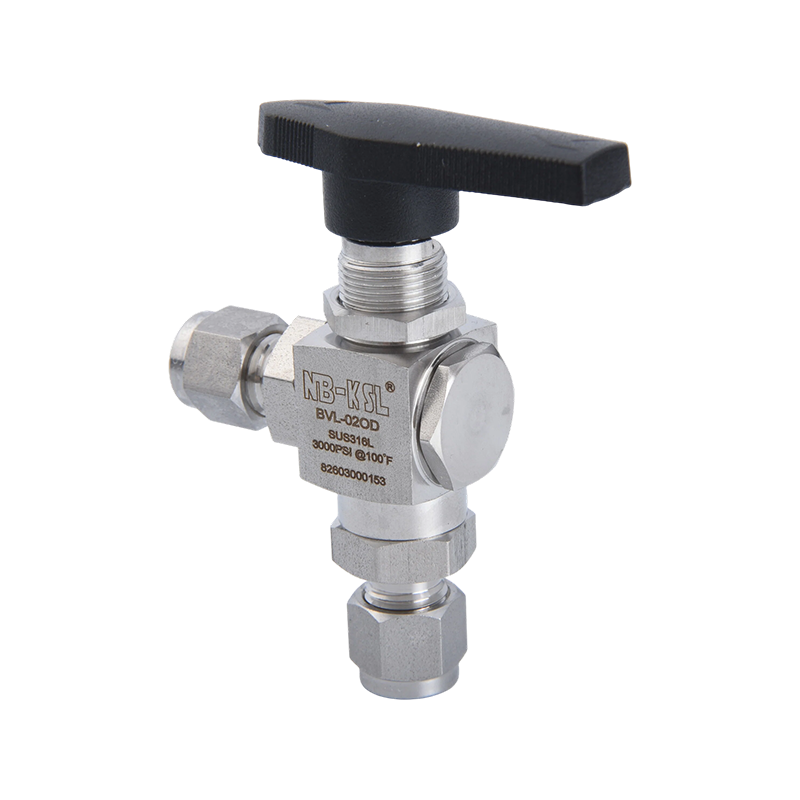

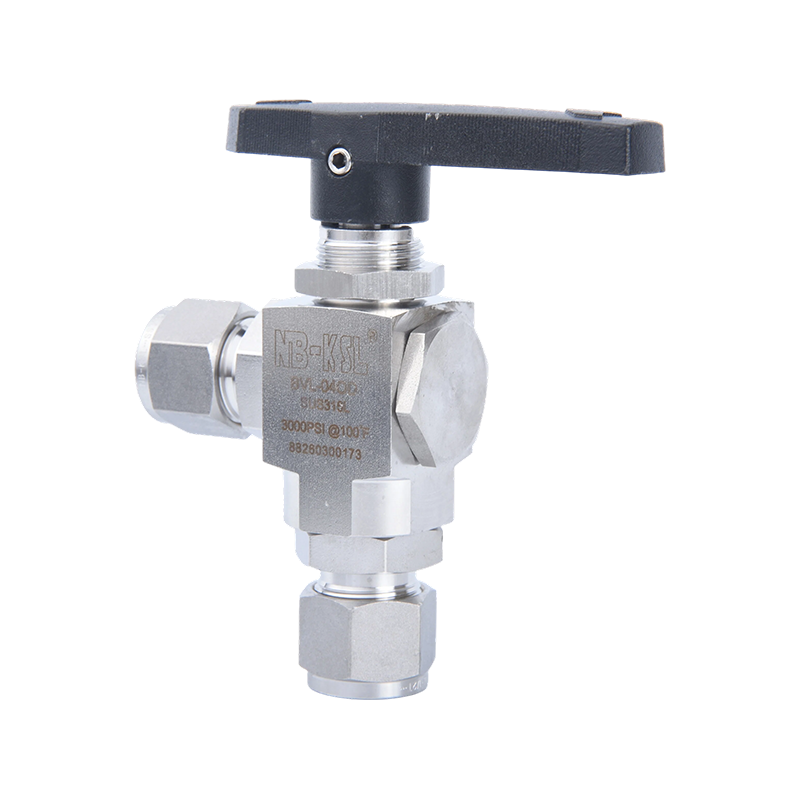

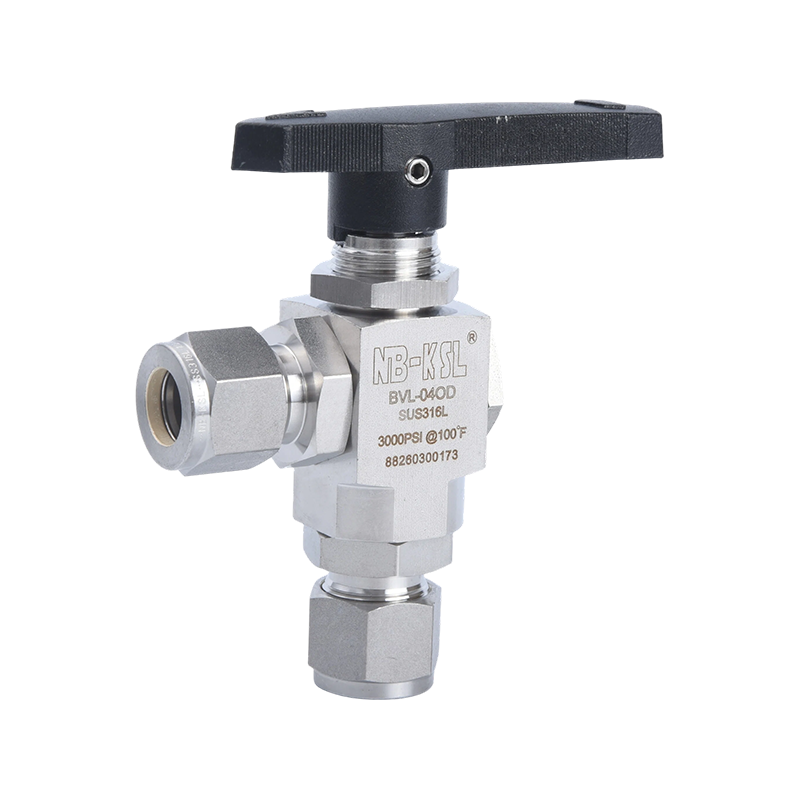

316L ステンレス鋼 BV 直角バルブ

これらのバルブは主に、液体および気体の媒体の流れを調整、分配、または遮断するために使用されます。 BV型直角バルブと三方バルブは、独自の流路設計により、配管システムのレイアウトの自由度を高め、設置スペースのコンパクト化と簡単・便利な操作性を実現します。バルブ本体は内部が精密に機械加工されており、流体の流れ時の圧力損失を最小限に抑えます。 BV型直角バルブは流路が90°曲がっているのが特徴です。このコンパクトな設計は、スペースが限られている環境やパイプラインのレイアウトが複雑な環境でも優れた設置の柔軟性を提供し、設置スペースを効果的に節約し、パイプラインのストレスを軽減します。どちらのタイプのバルブも流線型の内部構造設計を採用しており、バルブシートとバルブコアがしっかりとフィットし、流体の流れ時の圧力損失を最小限に抑えます。これにより、流体力学的性能も最適化され、デッドゾーンと液体の蓄積が減少し、効率的で安定した流量制御が保証されます。

  • 説明
  • お問い合わせ

ダイレクトボールバルブ

仕様

A

B

D1 内穴 貫通穴

C

D

E

F

BV-01OD

1/8LOK

63

31

2.4

50

47

5

14

BV-02OD

1/4LOK

66.4

31

5

50

47

5

14

BV-03OD

3/8LOK

70.5

31

5

50

47

5

14

BV-04OD

1/2LOK

86

40

10

84

62

5

19

BV-06OD 小型ボディ

3/4LOK

91

46.4

10

84

62

5

19

BV-08OD

1"OK

115.5

61.5

14

81

81

6

27

BV-3OD

3mmLOK

63

31

2.4

50

47

5

14

BV-4OD

4mmLOK

63

31

3

50

47

5

14

BV-6OD

6mmLOK

66.4

31

5

50

47

5

14

BV-8OD

8mmLOK

68.4

31

5

50

47

5

14

BV-10OD

10mmLOK

70.5

31

5

50

47

5

14

BV-12OD

12mmLOK

86

40

10

84

62

5

19

BV-14OD

14mmLOK

85

40

10

84

62

5

19

BV-16OD

16mmLOK

85

40

10

84

62

5

19

BV-18OD

18mmLOK

91

46.4

10

84

62

5

19

BV-20OD

20mmLOK

106.8

61.5

14

81

81

6

27

BV-22OD

22mmLOK

106.8

61.5

14

81

81

6

27

BV-25OD

25mmLOK

115.5

61.5

14

81

81

6

27

ダイレクトボールバルブ

NPT/PT

A

B

D1 内穴 貫通穴

C

D

E

F

BV-01F

1/8

46

/

5

50

47

5

14

BV-02F

1/4

54

/

5

50

47

5

14

BV-03F

3/8

64

1

10

84

62

5

19

BV-04F

1/2

66

1

10

84

62

5

19

BV-06F

3/4

87

1

14

81

81

6

27

BV-08F

1"

109.5

1

14

81

81

6

27
