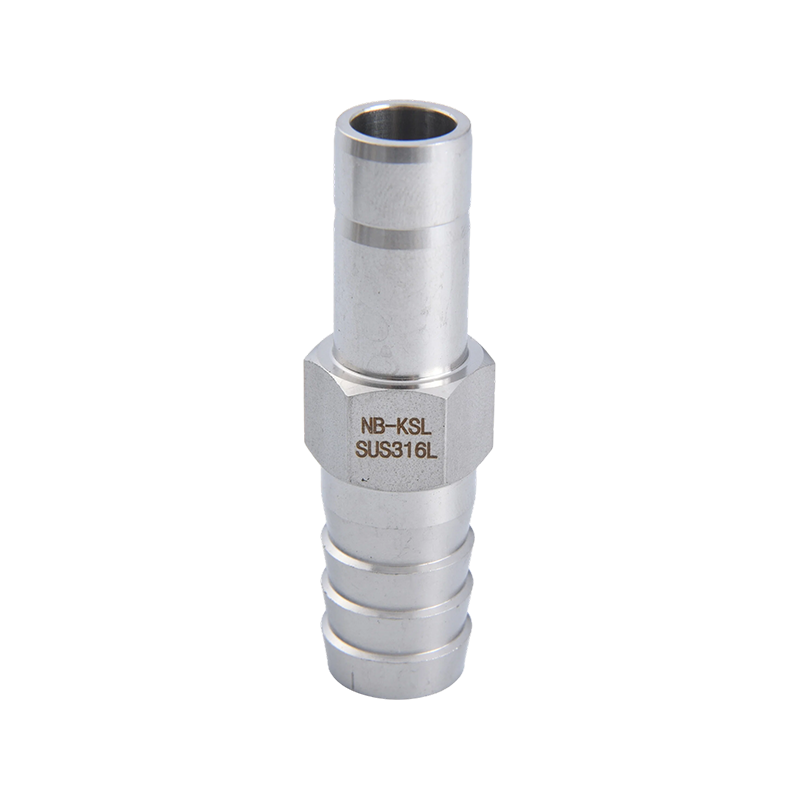

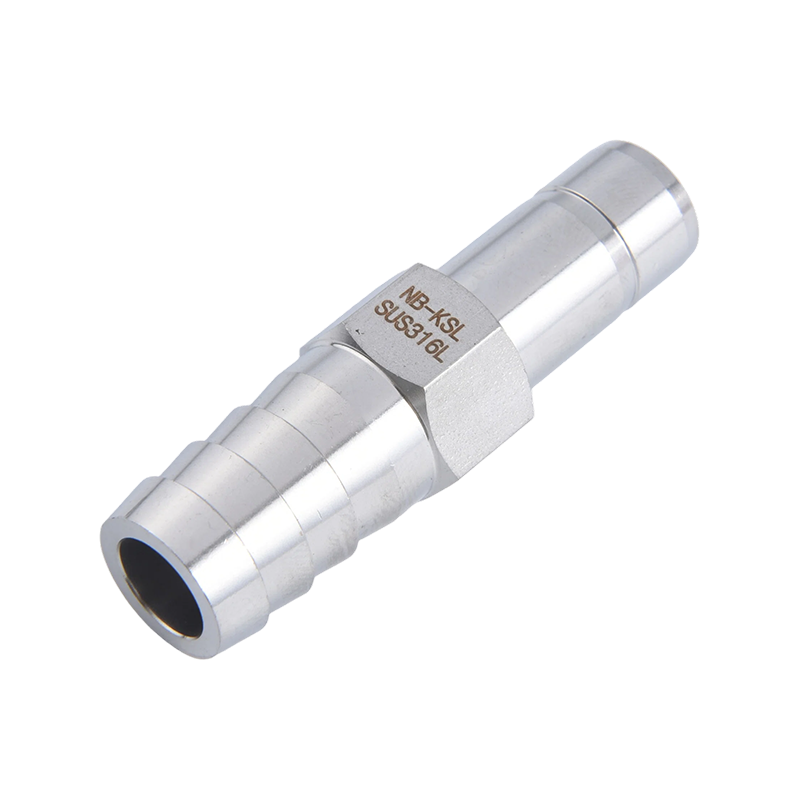

316L ステンレス鋼直管パゴダコネクタ

このコネクタは、主に 2 つのパイプセクション間の接続コンポーネントとして直管システムで使用され、迅速な取り付け、分解、メンテナンスを可能にします。パゴダ型の階段状のデザインを特徴とするその独自の構造により、圧力、振動、温度変化下での応力分散が均一になり、パイプの漏れや摩耗のリスクが軽減されます。パゴダ型の構造がこのコネクタの中心的な設計コンセプトです。多層ボス設計により、コネクタとパイプ間の接触面積が増加し、機械的安定性が向上します。段付き構造により内部圧力と振動力が均等に分散され、疲労破壊のリスクが軽減されます。パゴダ型のデザインにより、多点シール接触が容易になり、全体的なシール性能が向上します。

  • 説明
  • お問い合わせ

ホースコネクター

フラクショナルチューブをパイプに接続します

カタログ

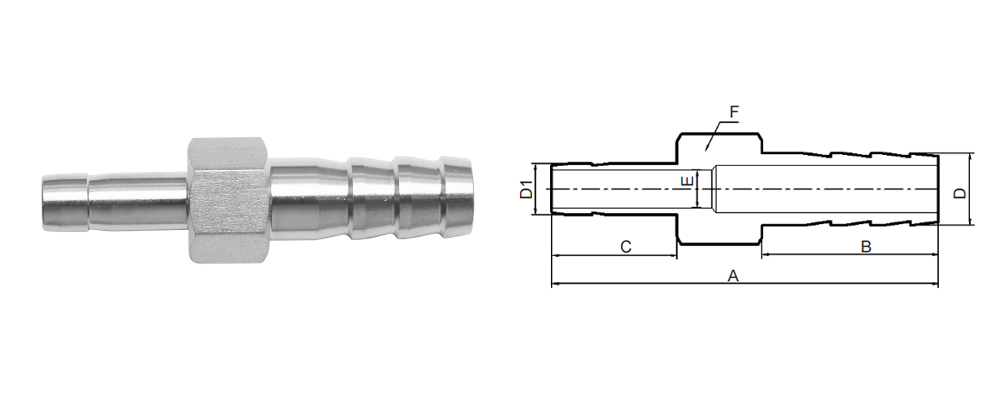

番号

A

B

C

E

D

D1

F

1/4-4mm

PJT-02-4

41.4

15

15.7

2.5

4.80

6.35

12

1/4-6mm

PJT-02-6

46.5

20.1

15.7

4.8

7.27

6.35

12

1/4-8mm

PJT-02-8

46.5

22.1

15.7

4.8

9

6.35

12

1/4-10mm

PJT-02-10

50.3

22.1

15.7

4.8

11.9

6.35

14

3/8-8mm

PJT-03-8

49.3

22.1

17.6

6

9

9.52

12

3/8-10mm

PJT-03-10

50.3

22.1

17.6

6

11.9

9.52

14

3/8-12mm

PJT-03-12

52.1

23.8

17.6

7.1

14.5

9.52

16

1/2-8mm

PJT-04-8

55.9

22.1

23.2

6

9

12.7

14

1/2-10mm

PJT-04-10

55.9

22.1

23.2

8

11.9

12.70

14

1/2-12mm

PJT-04-12

57.7

23.8

23.2

9.5

14.5

12.7

16

6mm-6mm

PJT-6-6

46.5

20.1

15.7

4.8

7.27

6

12

8mm-8mm

PJT-8-8

46.5

22.1

16.5

6

9

8

12

3/8-3/8

PJT-03-03

50.3

22.1

17.6

7.1

11.43

9.52

14

1/2-1/2

PJT-04-04

57.7

23.8

23.2

9.5

15.12

12.7

16

3/4-3/4

PJT-06-06

62

26.7

24.6

15

22.72

19.05

27
