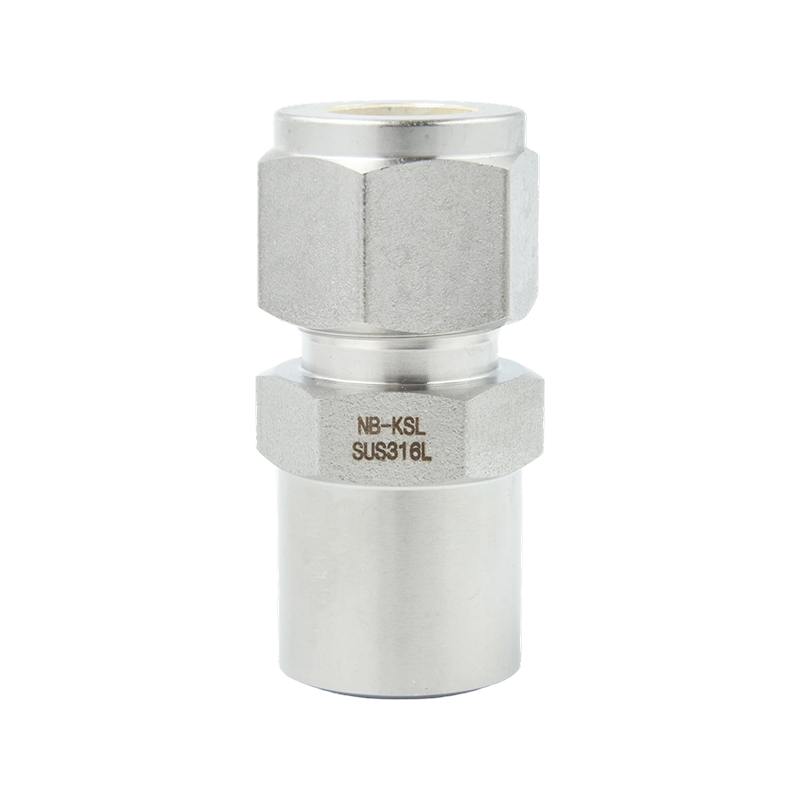

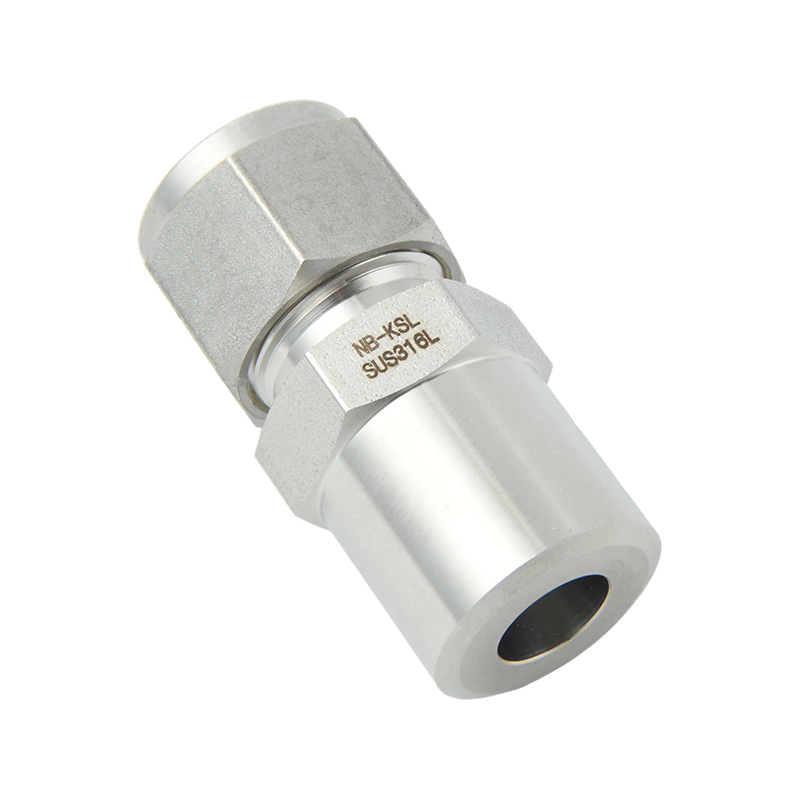

316L ステンレス鋼の PIPE パイプ突合せ溶接ジョイントへの圧縮継手

ホーム / 製品 / ステンレス鋼管継手 / チューブと溶接端 / 316L ステンレス鋼の PIPE パイプ突合せ溶接ジョイントへの圧縮継手

316L ステンレス鋼の PIPE パイプ突合せ溶接ジョイントへの圧縮継手

この製品は、低炭素オーステナイト系ステンレス鋼 (≤0.03% C) である 316L ステンレス鋼で作られています。 316L は炭素含有量が低いため、溶接後の粒界腐食のリスクが大幅に軽減され、この継手は過酷な化学プロセスや高純度流体輸送システムに適しています。圧縮継手の端は 3 つの主要な部分で構成されています。圧力リングはねじを通してパイプを圧縮し、金属間の緊密なシールを形成します。ねじを通して圧力リングを締めてパイプを継手に固定するナット。また、ナットが締められたときに圧力リングがパイプを完全に圧縮してシールを形成することを保証するための移行円錐面または段付き穴を備えた内部設計と、応力を分散してパイプの変形を防止します。

  • 説明
  • お問い合わせ

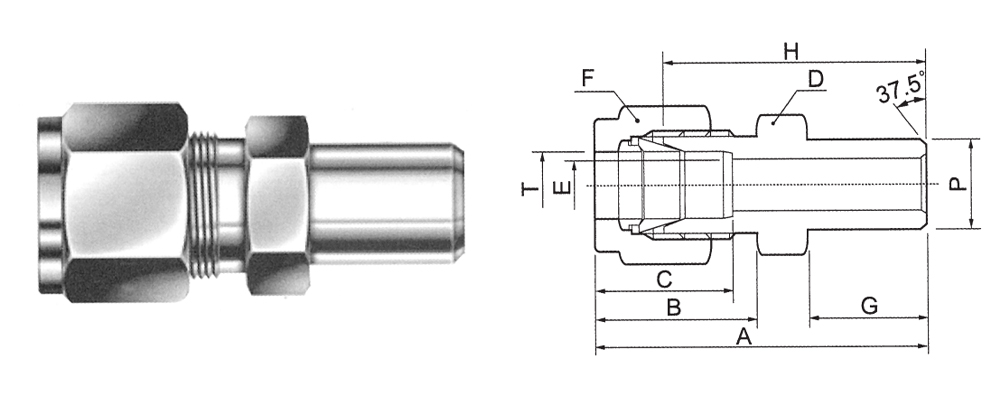

雄パイプ溶接コネクタ

フラクショナルチューブをパイプに接続します

Tチューブ外径

雄パイプ サイズ P

外径
mm

カタログ番号

A

B

C

D

E

F

G

H

1/8

10.29

ODBW-01-1P

31.4

16.5

14

12

2.4

12

9.7

23.9

1/4

10.29

ODBW-02-1P

35.9

17.8

15.8

14

4.8

14

9.7

25.7

114

13.72

ODBW-02-2P

38

17.8

15.8

14

4.8

14

14.2

30.2

3/8

10.29

ODBW-03-1P

36.6

19.6

19.6

17

5.1

17

9.7

29

3/8

13.72

ODBW-03-2P

40.1

19.6

19.6

17

7.1

17

14.2

32.5

3/8

17.15

ODBW-03-3P

40.1

19.6

19.6

19

7.1

17

14.2

32.5

3/8

21.35

ODBW-03-4P

46.5

19.6

19.6

22

7.1

17

19

38.9

1/2

13.72

ODBW-04-2P

43.5

22.2

23.4

22

7.1

22

14.2

33.3

1/2

17.15

ODBW-04-3P

43.5

22.2

23.4

22

9.5

22

14.2

33.3

1/2

21.35

ODBW-04-4P

49.1

22.2

23.4

22

10.4

22

19

38.9

1/2

26.67

ODBW-04-6P

50.5

22.2

23.4

27

10.4

22

19

40.4

3/4

21.35

ODBW-06-4P

50.7

22.4

24.4

27

10.4

30

19

40.3

3/4

26.67

ODBW-06-6P

50.7

22.4

24.4

27

15.7

30

19

40.3

1"

33.4

ODBW-08-8P

62.7

27

31.7

35

22.4

38

23.9

50


メートル法のチューブをパイプに接続します

Tチューブ外径

雄パイプ サイズ P

外径
mm

カタログ番号

A

B

C

D

E

F

G

H

3

10.29

ODBW-3-1P

30.1

16

13.5

12

2.4

12

9.7

23.1

4

10.29

ODBW-4-1P

30.8

16.2

13.7

12

3

12

9.7

24.1

6

10.29

ODBW-6-1P

33.5

17.8

15.8

14

4.8

14

9.7

25.7

6

13.72

ODBW-6-2P

38

17.8

15.8

14

4.8

14

14.2

30.2

8

10.29

ODBW-8-1P

34.4

18.7

16.7

14

5.1

16

9.7

26.7

8

13.72

ODBW-8-2P

38.9

18.7

16.7

16

6.4

16

14.2

31.2

8

21.34

ODBW-8-4P

45

18.7

16.7

22

6.4

16

19

37.3

10

13.72

ODBW-10-2P

40.9

19.6

19.6

17

7.1

19

14.2

33.3

10

17.15

ODBW-10-3P

40.9

19.6

19.6

19

7.9

19

14.2

33.3

10

21.34

ODBW-10-4P

45.7

19.6

19.6

22

7.9

19

19

38.1

12

13.72

ODBW-12-2P

44.1

22.8

23.8

22

7.1

22

14.2

33.3

12

17.15

ODBW-12-3P

44.1

22.8

23.8

22

9.5

22

14.2

33.3

12

21.34

ODBW-12-4P

49.7

22.8

23.8

22

9.5

22

19

38.9

14

17.15

ODBW-14-3P

44.8

22.8

24.8

24

10.3

27

14.2

34

16

21.34

ODBW-16-4P

49.3

22.4

24.4

24

12.7

27

19

38.9

16

26.67

ODBW-16-6P

50.7

22.4

24.4

27

12.7

27

19

40.3

18

21.34

ODBW-18-4P

51.2

22.8

24.8

27

10.4

30

19

40.4

20

26.67

ODBW-20-6P

52.7

23.5

25.5

30

15.9

32

19

42.2

特に指定のない限り、すべての寸法はミリメートル単位です。参照用のみであり、変更される可能性があります。
