316Lステンレス鋼 圧縮継手タイプPIPEパイプ突合せ溶接エルボ

ホーム / 製品 / ステンレス鋼管継手 / チューブと溶接端 / 316Lステンレス鋼 圧縮継手タイプPIPEパイプ突合せ溶接エルボ

316Lステンレス鋼 圧縮継手タイプPIPEパイプ突合せ溶接エルボ

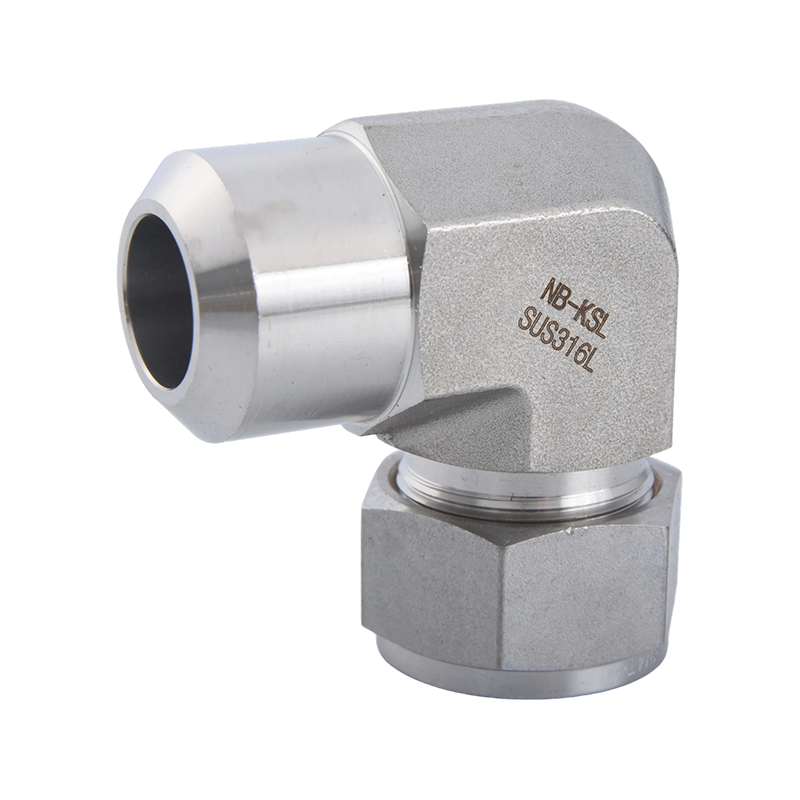

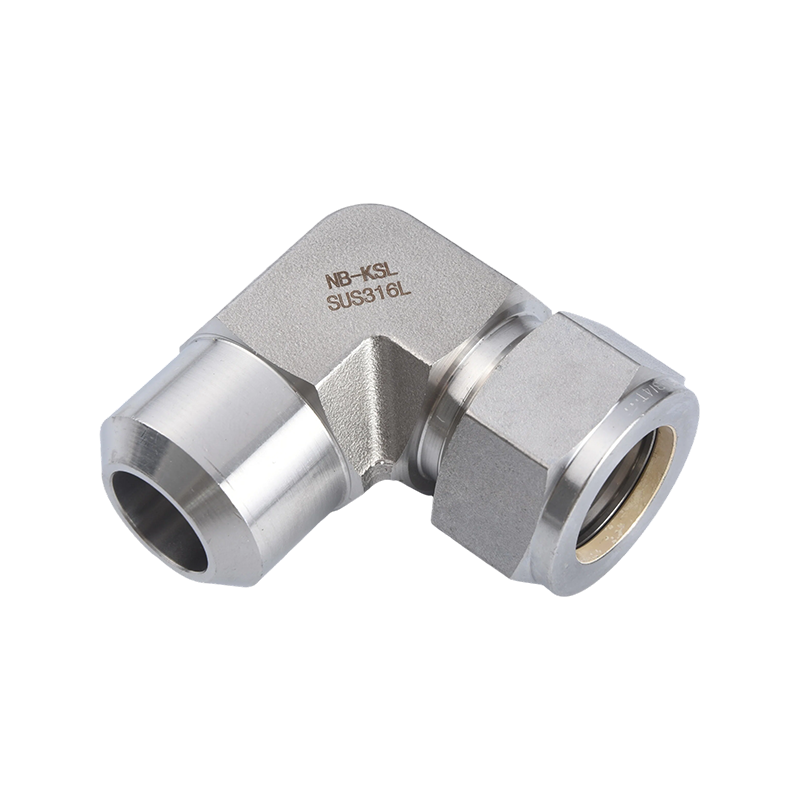

この製品は、要求の厳しい流体輸送システム向けに特別に設計された高性能コネクタです。パイプラインの流れ方向を変えるための管継手で、45度または90度の角度があり、180度リターンエルボもございます。その構造上の特徴は、通常のエルボとは大きく異なります。パイプの突合せ端は、メインパイプラインへの完全溶け込み突合せ溶接用に設計されています。溶接の溶け込みと溶接の品質を確保するために、端には精密な面取りが施されています。圧縮接続端は、溶接のない迅速な接続ができるように設計されています。この端には、内部に特定のテーパー状シール面またはフェルール構造があり、ナットおよび圧縮コンポーネント (フェルール、O リング、金属圧力リングなど) と連動して、ナットを締めることによって生成される軸方向の圧縮力によってシール要素が変形します。

  • 説明
  • お問い合わせ

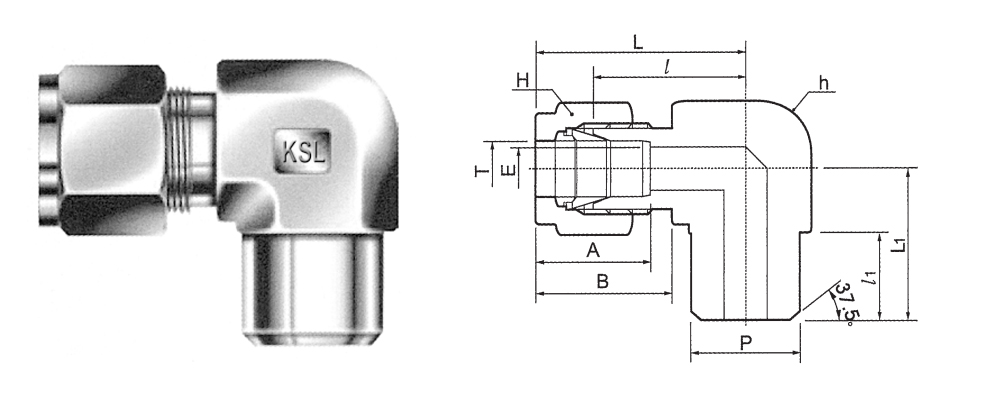

チューブソケットウェルドエルボ

フラクショナルチューブをパイプに接続します

Tチューブ外径

雄パイプ サイズ P

カタログ番号

A

B

E

h

H

/

/1

L

L1

1/8

10.29

EBW-01-1P

14

16.5

2.4

12.7

12

18.6

10

26.1

19.1

1/4

10.29

EBW-02-1P

15.8

17.8

4.8

15

14

19.6

10

27.1

21.1

1/4

13.72

EBW-02-2P

15.8

17.8

4.8

15

14

23.2

14.2

30.7

23.2

3/8

13.72

EBW-03-2P

19.6

19.6

7.1

15

17

21.3

14.2

27.8

24

1/2

21.34

EBW-044P

23.4

22.2

10.4

23

22

26.5

17

36.5

31

3/4

26.67

EBW-06-6P

24.4

22.4

15.7

28

30

29.7

19

40.1

38.8


フラクショナルチューブをパイプに接続します

Tチューブ外径

雄パイプ サイズ P

カタログ番号

A

B

E

h

H

1

/

L

L1

8

10.29

EBW-8-1P

16.7

18.7

6.4

15

16

21.3

10

28

21.1

8

13.72

EBW-8-2P

16.7

18.7

6.4

15

16

21.3

14.2

28

24

8

17.15

EBW-8-3P

16.7

18.7

6.4

17.5

16

23.1

14.2

29.8

26

8

21.34

EBW-8-4P

16.7

18.7

6.4

23

16

25.5

17

32.2

31

10

13.72

EBW-10-2P

19.6

19.6

7.9

17.5

19

23.9

14.2

30.9

26

10

17.15

EBW-10-3P

16.6

19.6

7.9

17.5

19

23.9

14.2

30.9

26

12

13.72

EBW-12-2P

23.8

22.8

9.5

23

22

26.5

14.2

37

28.2

12

17.15

EBW-12-3P

23.8

22.8

9.5

23

22

26.5

14.2

37.3

28.2

12

21.34

EBW-12-4P

23.8

22.8

9.5

23

22

26.5

17

37.3

31

14

21.34

EBW-14-4P

24.8

22.8

11.1

23

27

26.5

17

37.3

31

16

21.34

EBW-16-4P

24.4

22.4

12.7

23

27

26.5

17

36.9

31

16

26.67

EBW-16-6P

24.4

22.4

12.7

28

27

29.7

19

40.1

38.8

20

21.34

EBW-20-4P

25.5

23.5

15.8

28

32

32

17

42.5

38.5

20

26.67

EBW-20-6P

25.5

23.5

15.8

28

32

32

19

42.5

38.5

25

26.67

EBW-25-6P

31.7

27

21.8

35

38

36.8

19

50.5

41.7
