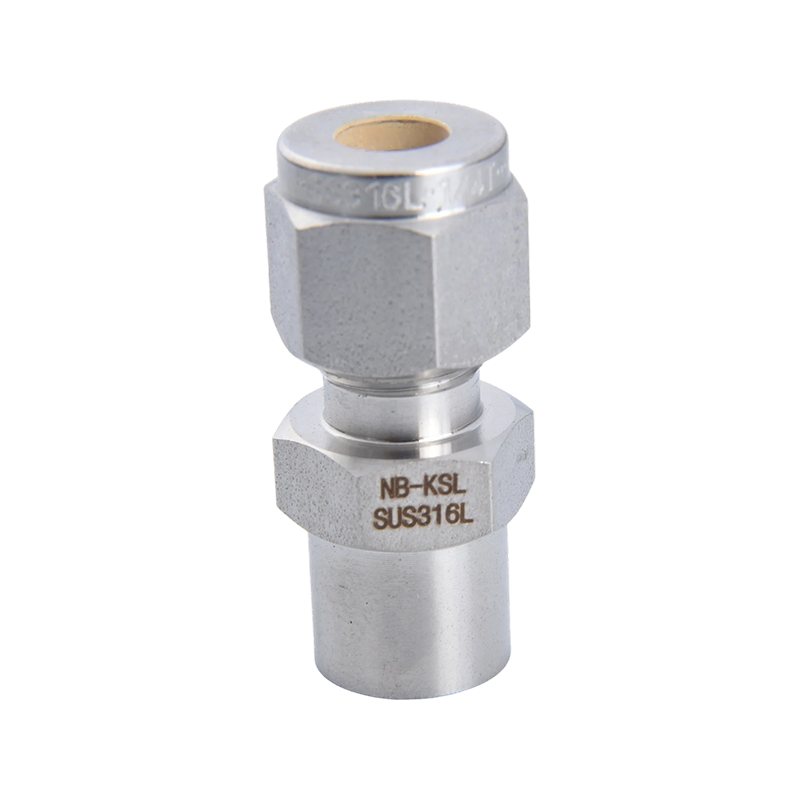

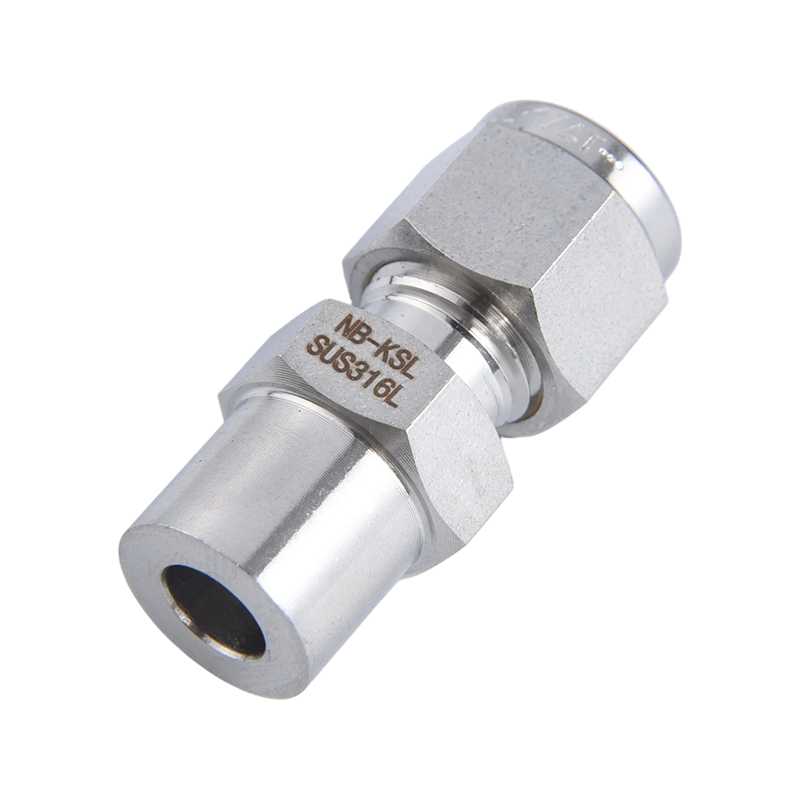

316L ステンレス鋼のチューブソケット溶接ヘッドへの圧縮フィッティング

316L ステンレス鋼圧縮継手チューブソケット溶接ヘッドは、要求の厳しい産業用配管システム向けに特別に設計された高性能接続要素です。その設計は、圧縮継手とチューブソケット溶接ヘッドの利点を組み合わせたものです。圧縮継手部にはナットと二重内管リングを使用し、パイプをしっかりとクランプしシールします。一部のモデルには、シール性能を強化するためにフッ素ゴムまたは PTFE シール リングを装備することもでき、特に高圧または高純度の媒体環境に適しています。チューブソケット溶接ヘッドセクションには高精度溶接スリーブが使用されており、TIG または MIG 溶接プロセスによりパイプ端への高強度の機械的接続を形成します。内部溶接シーム設計はスムーズな移行を特徴としており、流体の乱流と媒体の蓄積を効果的に低減し、高い清浄度要件が求められるシステムに適しています。

  • 説明
  • お問い合わせ

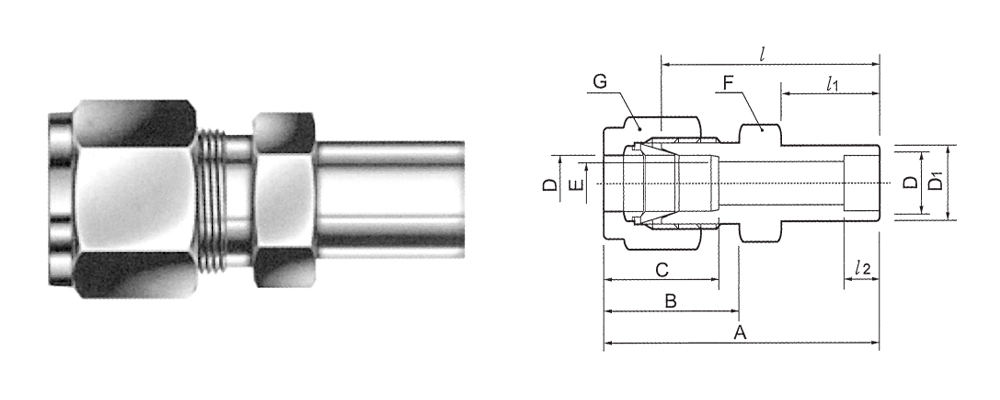

チューブソケットウェルドコネクタ

フラクショナルチューブを接続します

チューブ外径 D インチ mm

D1

カタログ
番号

A

B

C

E

F

G

1

/ 1

/2

3.17

7.8

DSW-01-1

29.9

16.5

14

2.4

12

12

22.4

8.6

6.4

6.35

11.1

DSW-02-2

34

17.8

15.8

4.8

12

14

26.2

10.4

7.8

9.52

15.7

DSW-03-3

37.8

19.6

19.6

7.1

16

17

30.2

12

9.7

12.7

19

DSW-04-4

41.2

22.2

23.4

10.4

22

22

31

12

12.7

19.05

26.7

DSW-06-6

43.7

22.4

24.4

15.7

27

30

33.3

12

14.2

25.4

33.3

DSW-08-8

53.1

27

31.7

22.4

35

38

40.4

14.2

19
