316Lステンレス製アングル型3方ポートボールバルブ

ホーム / 製品 / ステンレス製ボールバルブ / 316Lステンレス製アングル型3方ポートボールバルブ

316Lステンレス製アングル型3方ポートボールバルブ

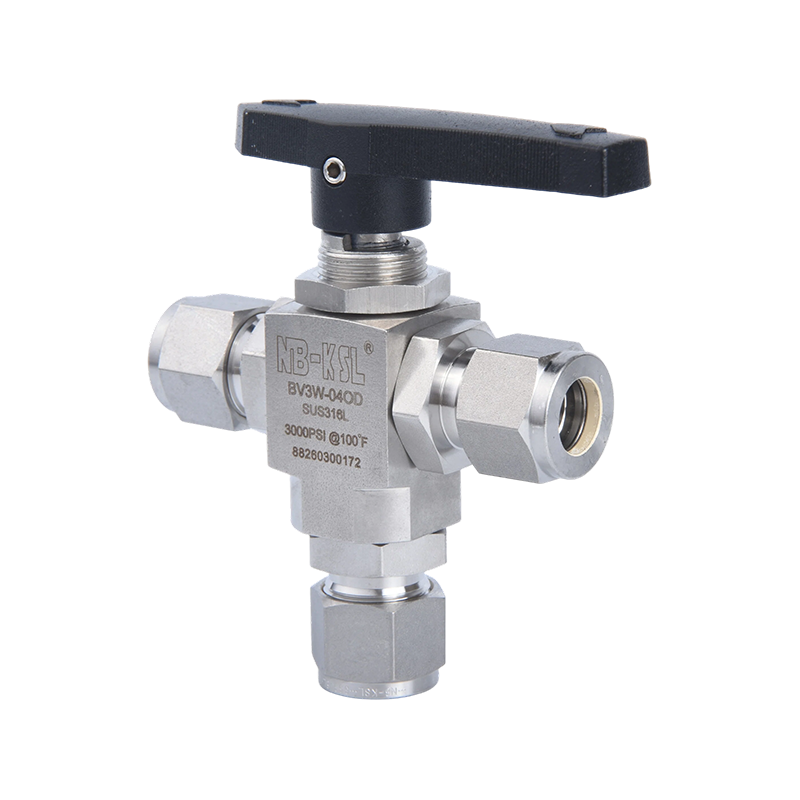

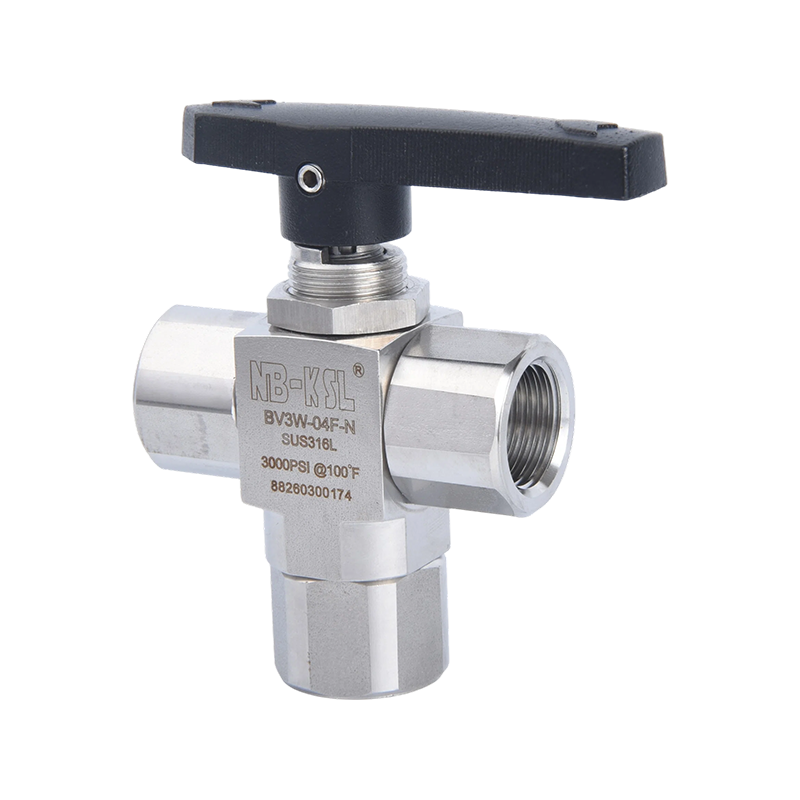

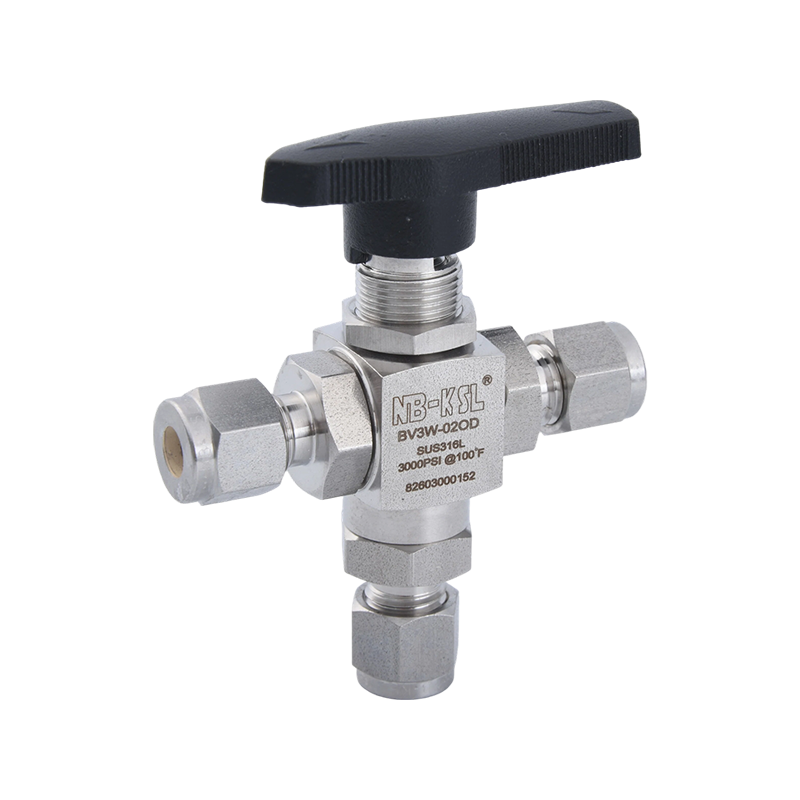

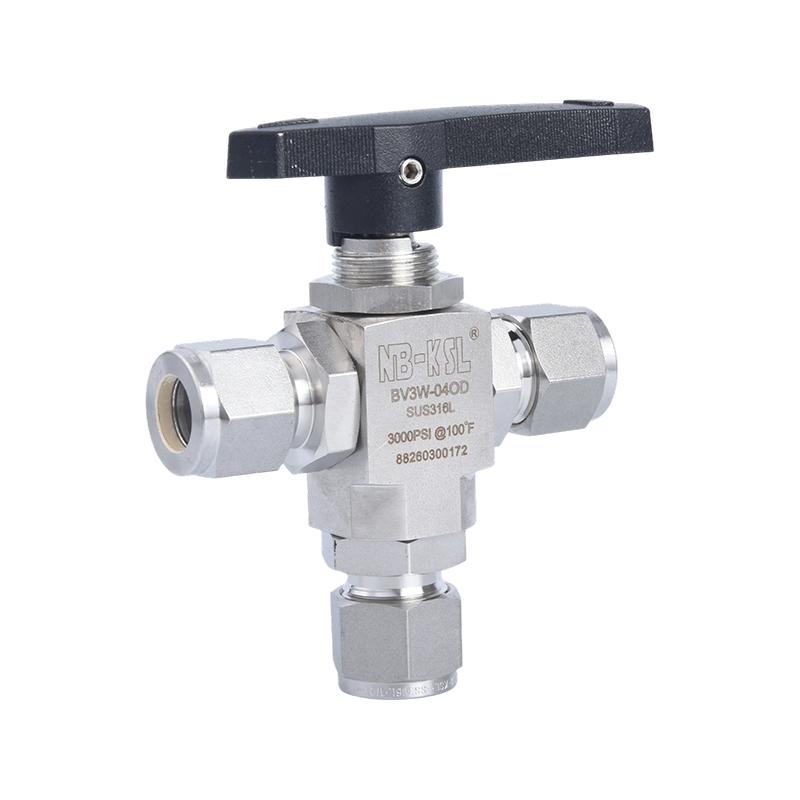

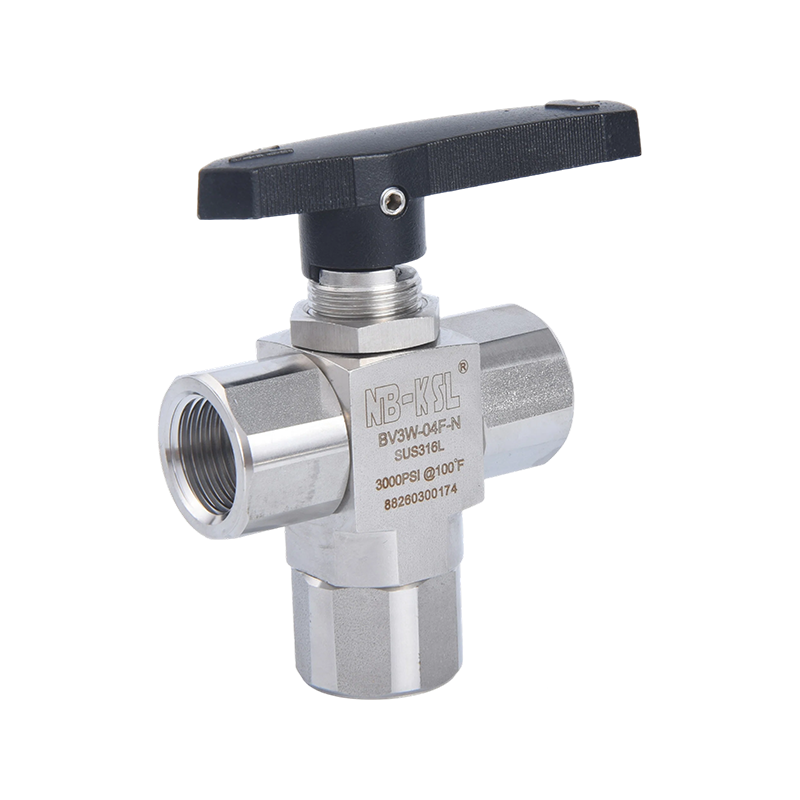

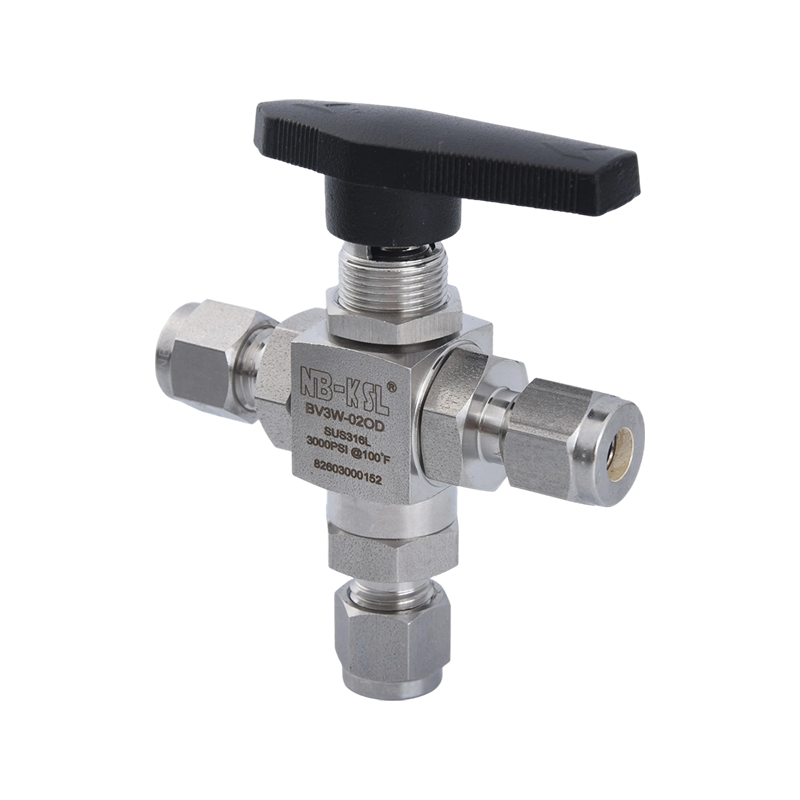

このアングルボールバルブは、主にバルブ本体、バルブボール、バルブステム、シールリング、バルブカバー、ハンドルで構成されています。 L 字型のバルブ本体により、コーナー位置での効率的なパイプライン レイアウトが可能になり、パイプラインの長さと曲がりの数が削減されます。三方ボールバルブは T 字型の内部チャネル設計を特徴とし、流体の分流、合流、または切り替えを可能にします。三方ボールバルブは、パイプライン設計におけるバルブの数を大幅に減らし、設置コストとメンテナンスの困難さを軽減します。ボールバルブは、バルブステムを手動で回転させることによって操作され、バルブボールが90°回転し、バルブボールの内部貫通穴がパイプラインと位置合わせされ、流体の流れのオン/オフまたは切り替えが行われます。アングル ボール バルブは 90° の曲がりでパイプラインの回転を実現しますが、三方ボール バルブはバルブ ボールをさまざまな角度で回転させることで流体の分流と合流操作を実現します。

  • 説明
  • お問い合わせ

ライトアングルボールバルブ

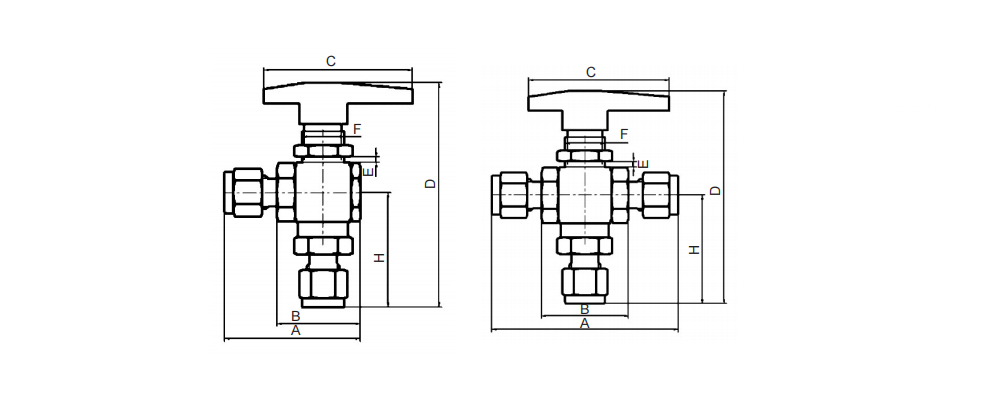

仕様

A

B

D1 内穴 貫通穴

C

D

H

E

F

BVL-010D

1/8LOK

44.5

28

2.4

50

74

37

5

14

BVL

02OD

1/4LOK

45.8

28

5

50

75.7

38.7

5

14

BVL

03OD

3/8LOK

47.6

28

5

50

77.7

40.7

5

14

BVL

04OD

1/2LOK

59.2

37

10

84

102

54.7

5

19

BVL-

06OD小体

3/4LOK

62.4

40

10

84

108

60.4

5

19

BVL

3OD

3mmLOK

44

28

2.4

50

74

37

5

14

BVL

6OD

6mmLOK

45.8

28

5

50

75.7

38.7

5

14

BVL

8OD

8mmLOK

46.7

28

5

50

76.7

39.7

5

14

BVL-100D

10mmLOK

47.6

28

5

50

77.7

40.7

5

14

BVL

12OD

12mmLOK

59.8

37

10

84

102

54.7

5

19

BVL

14OD

14mmLOK

59.8

37

10

84

101.6

54.2

5

19

BVL

01F

1/8

35.5

1

5

50

66.5

29.5

5

14

BVL

02F

1/4

39.5

1

5

50

69.5

32.5

5

14

BVL

03F

3/8

44.5

7

10

84

90.5

44.5

5

19

BVL-04F

1/2

45.5

/

10

84

91.5

45.5

5

19

三方ボールバルブ

仕様

A

B

D1 内穴 貫通穴

C

D

H

E

F

BV3W-010D

1/8LOK

63

31

2.4

50

74

37

5

14

BV3W 02OD

1/4LOK

66.4

31

5

50

75.7

38.7

5

14

BV3W-03OD

3/8LOK

70.5

31

5

50

77.7

40.7

5

14

BV3W-040D

1/2LOK

86

40

10

84

102

54.7

5

19

BV3W 06OD

3/4LOK

91

46

10

84

108

60.4

5

19

BV3W 3OD

3mmLOK

63

31

2.4

50

74

37

5

14

BV3W 4OD

4mmLOK

63

31

3

50

74

37

5

14

BV3W-6OD

6mmLOK

66.4

31

5

50

75.7

38.7

5

14

BV3W 8OD

8mmLOK

68.4

31

5

50

76.7

39.7

5

14

BV3W-100D

10mmLOK

70.5

31

5

50

77.7

40.7

5

14

BV3W 12OD

12mmLOK

86

40

10

84

102

54.7

5

19

BV3W-140D

14mmLOK

85

40

10

84

101.6

54.2

5

19

BV3W-160D

16mmLOK

85

40

10

84

101.6

54.2

5

19

三方ボールバルブ

NPT/PT

A

B

D1 内穴 貫通穴

C

D

H

E

F

BV3W-01F

1/8

46

/

5

50

66.5

29.5

5

14

BV3W-02F

1/4

54

1

5

50

69.5

32.5

5

14

BV3W-03F

3/8

64

1

10

84

90.5

44.5

5

19

BV3W-04F

1/2

66

/

10

84

91.5

45.5

5

19
