316L ステンレス鋼おねじパゴダ コネクタ

ホーム / 製品 / ステンレス鋼管継手 / スペアパーツ / 316L ステンレス鋼おねじパゴダ コネクタ

316L ステンレス鋼おねじパゴダ コネクタ

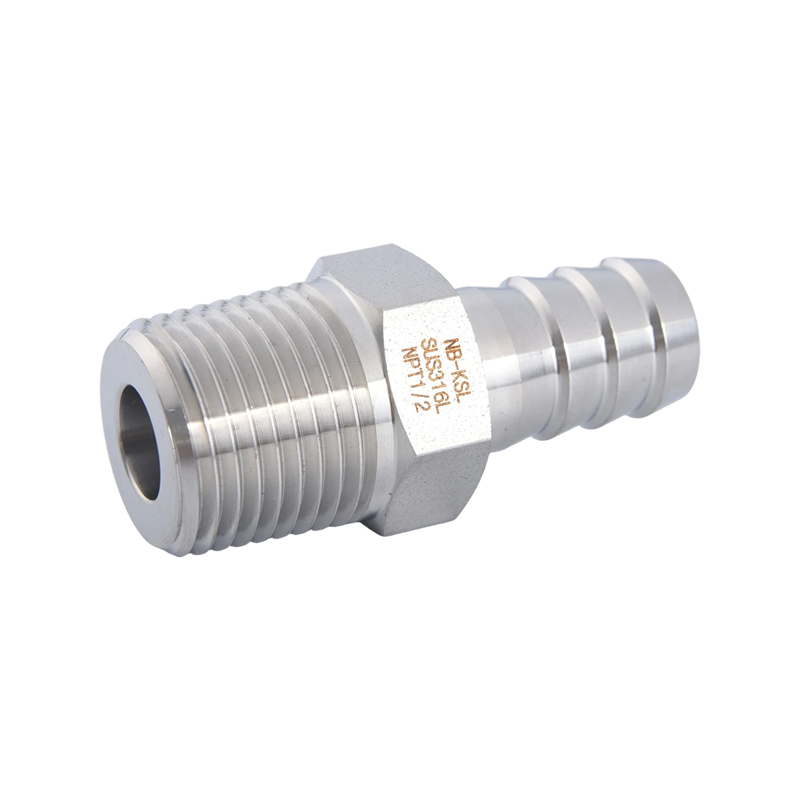

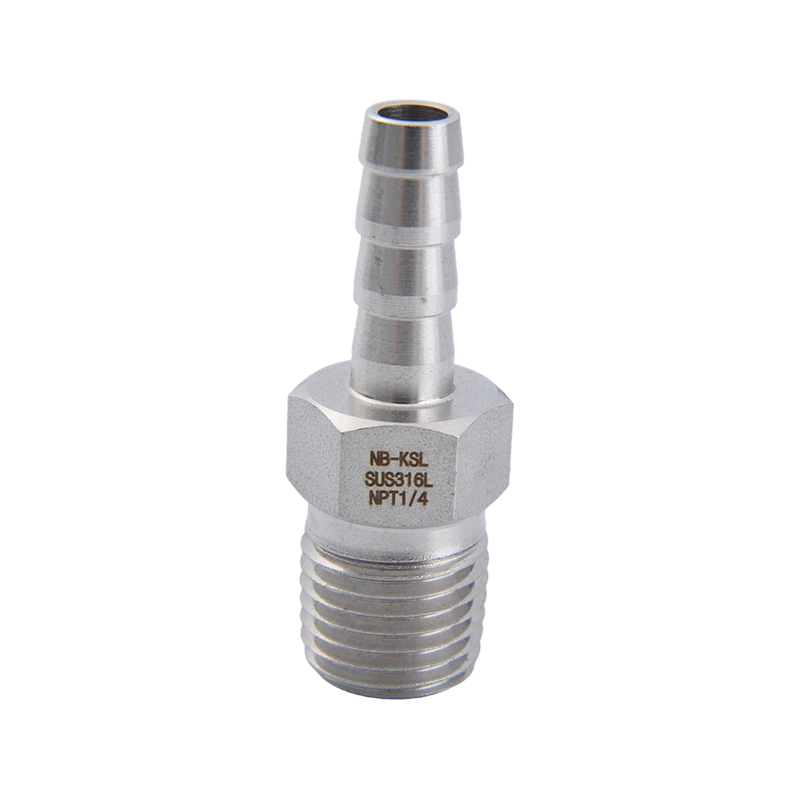

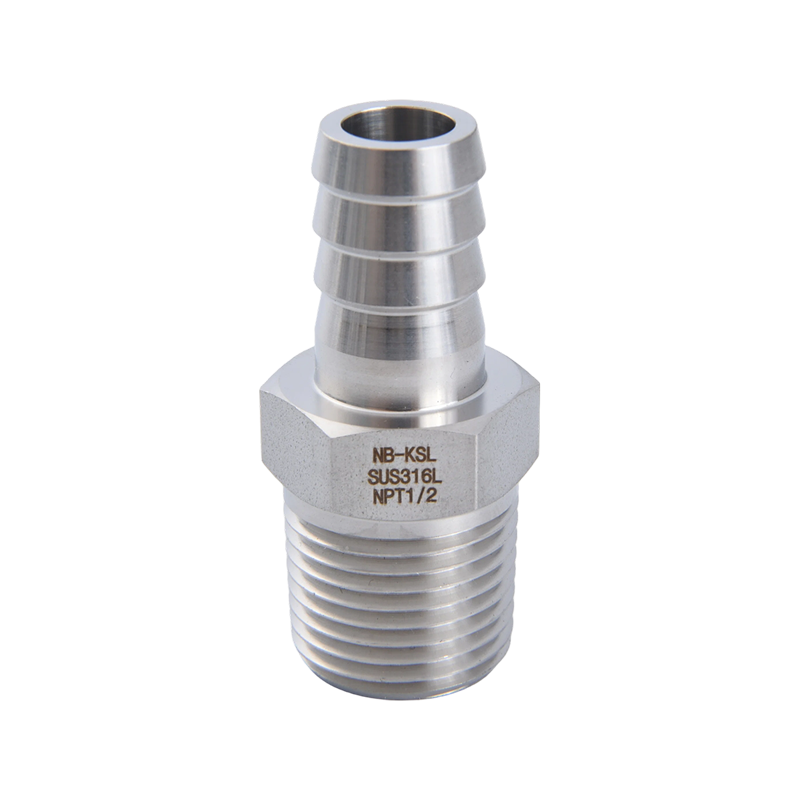

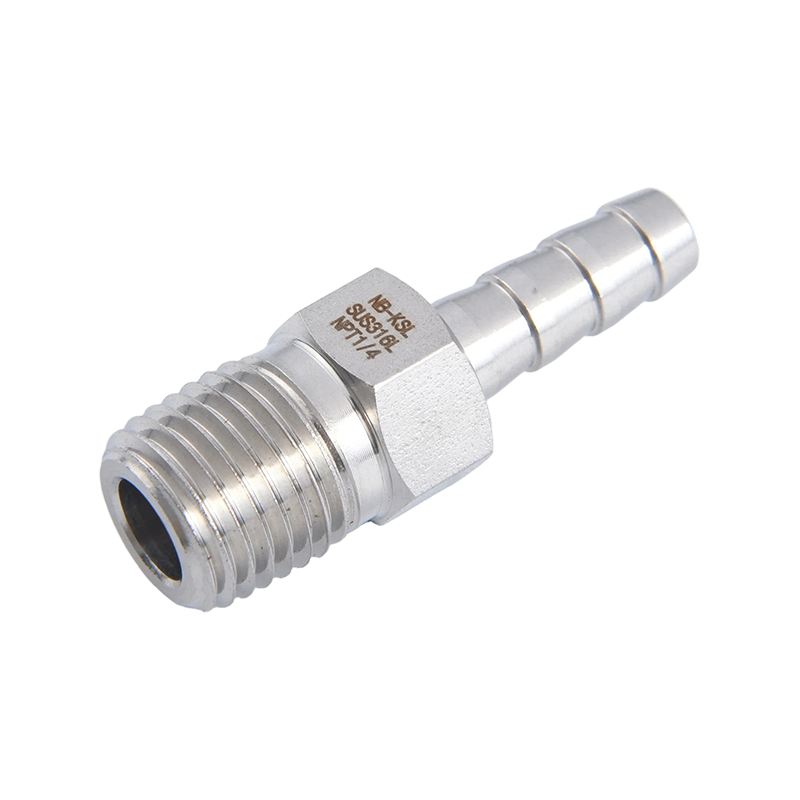

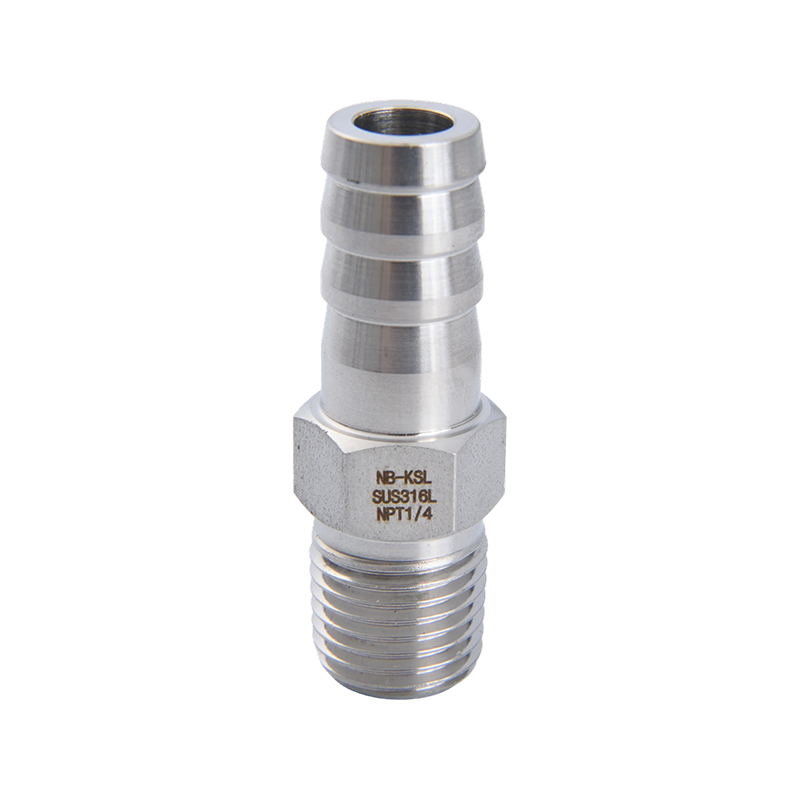

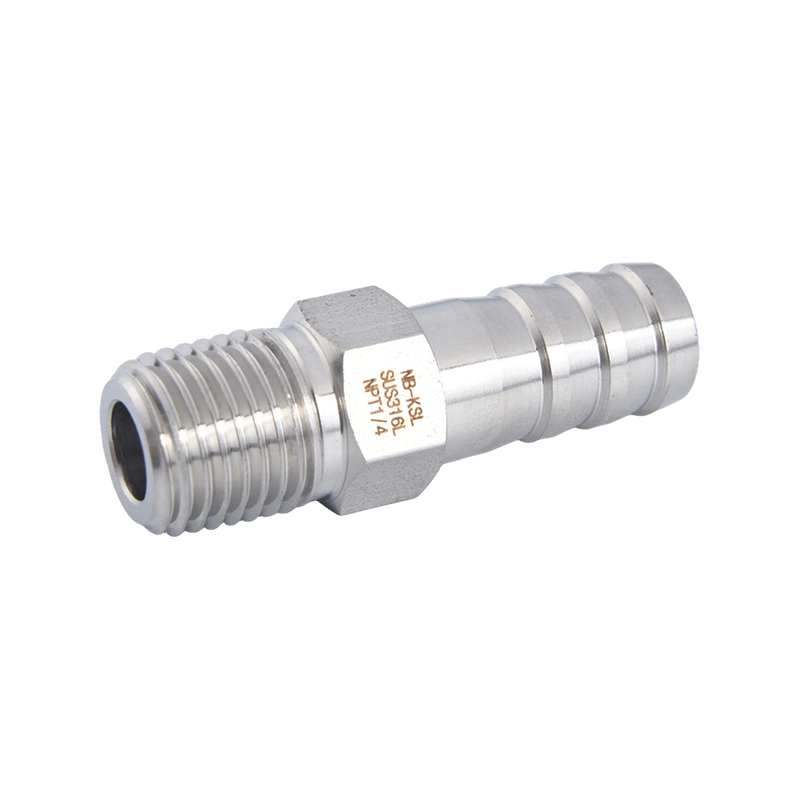

316L ステンレス鋼製外ねじパゴダ コネクタは、流体配管システム用の剛性コネクタです。その中心的な機能は、ホースと剛性インターフェース (機器のポート、バルブ、鋼管の雌ねじなど) との間の迅速な変換とシール接続を可能にすることです。一方の端には、ホースを接続するためのとげのある突起が付いたパゴダ型のヘッドが付いています。もう一方の端は、雌ネジ穴にねじ込んだり、ナットで固定したりするための雄ネジを備えた金属インターフェイスです。この材料は ASTM A276 または EN 10088 規格に準拠しており、その中心成分は鉄、クロム、ニッケル、および 2% ~ 3% のモリブデンです。従来の 304 ステンレス鋼と比較して、モリブデンの添加により、製品の塩化物イオン腐食に対する耐性が大幅に向上しました。

  • 説明
  • お問い合わせ

ホースコネクター

メートル法のチューブをパイプに接続します

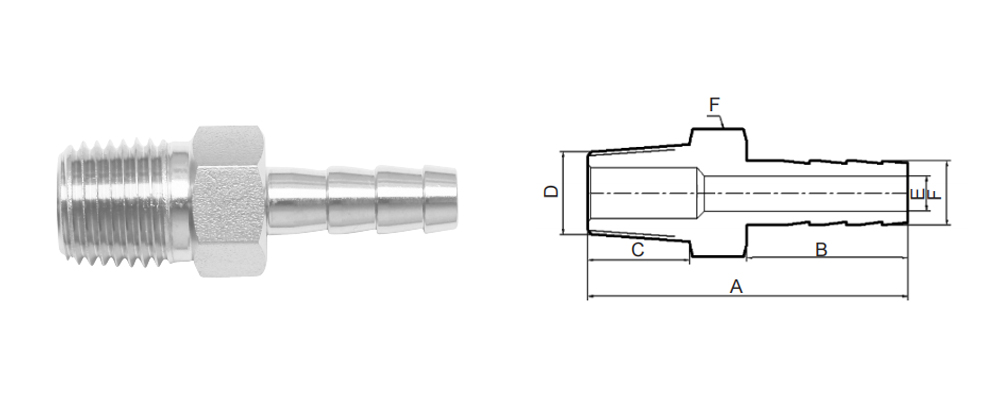

カタログ番号

A

B

C

D

E

D

F

1/4NPT-6mm

PJM-6-02-N

41.9

20.1

14

1/4NPT

4.8

7.27

14

1/4NPT-8mm

PJM-8-02-N

43.9

22.1

14

1/4NPT

5

9

14

1/4NPT-10mm

PJM-10-02-N

43.9

22.1

14

1/4NPT

7.1

11.9

14

1/2NPT-1/2

PJM-04-04-N

51.6

23.8

19

1/2NPT

9.7

15.12

22

特に指定がない限り、すべての寸法はミリメートル単位であり、参照のみを目的としており、変更される可能性があります。
