316L ステンレス鋼カード スリーブ パゴダ コネクタ

ホーム / 製品 / ステンレス鋼管継手 / スペアパーツ / 316L ステンレス鋼カード スリーブ パゴダ コネクタ

316L ステンレス鋼カード スリーブ パゴダ コネクタ

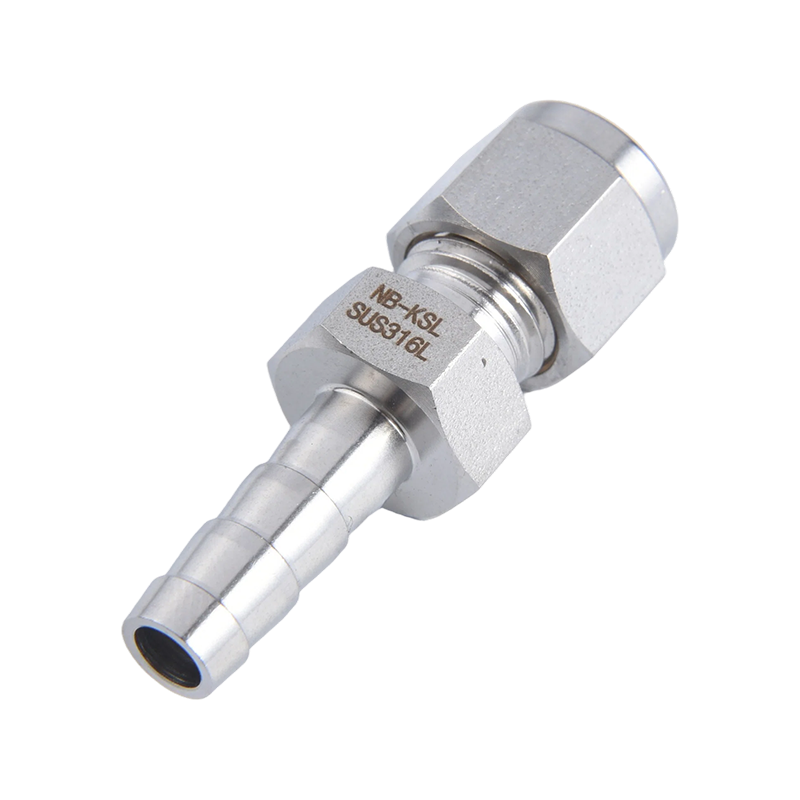

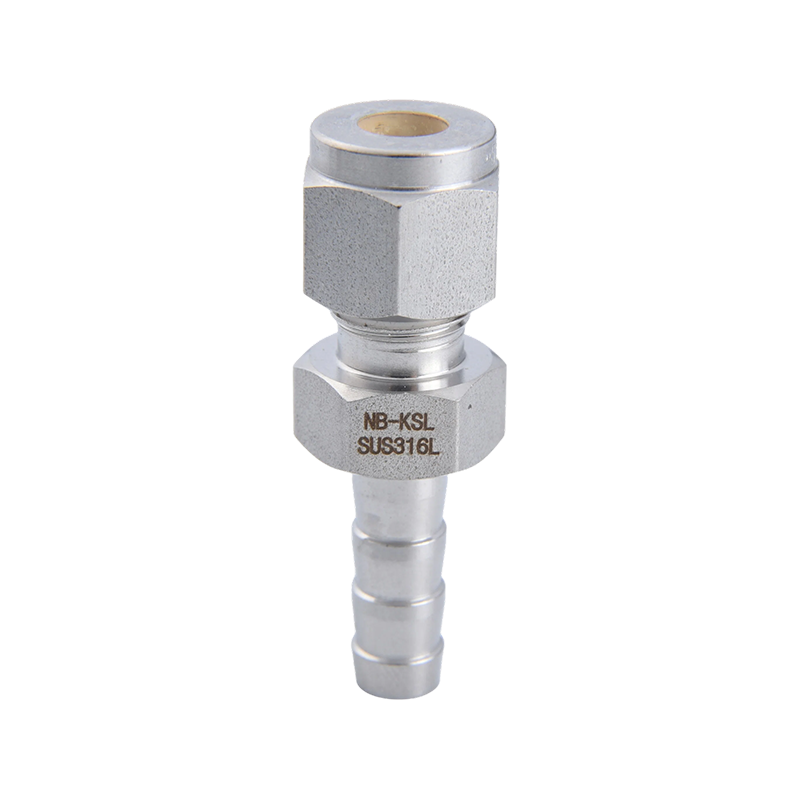

316L ステンレス鋼カード スリーブ パゴダ コネクタは、流体配管システム用の特殊なアダプタです。その中心的な機能は、剛性パイプ (金属パイプなど) と柔軟なパイプ (ゴムまたはプラスチック ホースなど) の間の効率的で密閉された接続を実現することです。製品本体は 316L オーステナイト系ステンレス鋼で作られており、圧縮フィッティング ハードシール技術とパゴダ スタイルの機械的クランプ構造を組み合わせています。溶接やフレア加工は必要ありません。金属パイプの永久シールは、機械的に締めるだけで実現されます。同時に、バーブ構造によりフレキシブル ホースの迅速な組み立てと分解が可能となり、高精度、高耐食性、高清浄度の配管システムの重要なコンポーネントとなっています。この端は、異なる材質のホースを接続するように設計されており、コネクタ端には塔のような階段状の環状突起が付いています。これらのバーブは単純なリングではなく、特定の入口角度と出口角度で設計されています。バーブの先端は硬化されているか、316L の固有の硬度に依存して、フレキシブル ホースの内面にわずかに侵入します。

  • 説明
  • お問い合わせ

ホースコネクター

メートル法のチューブとパイプを接続します

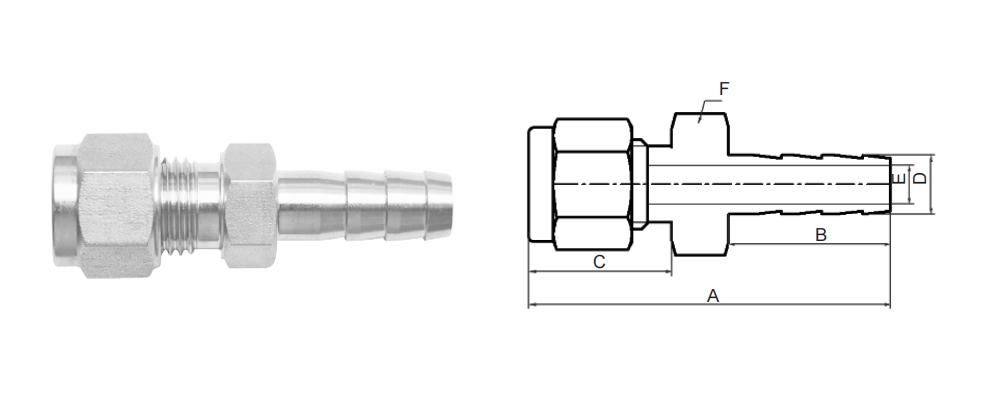

カタログ
番号

T

A

B

C

E

D

F

1/4-6mm

PJOD-02-6

1/4

44.9

20.1

17.8

4.8

7.27

12

1/4-8mm

PJOD-02-8

1/4

46.8

22.1

17.8

6

9

12

3/8-6mm

PJOD-03-6

3/8

46.2

20.1

19.6

4.8

7.27

16

3/8-8mm

PJOD-03-8

3/8

48.2

22.1

19.6

6

9

16

6mm-6mm

PJOD-6-6

6

44.9

20.1

17.8

4.8

7.27

12

8mm-8mm

PJOD-8-8

8

47.8

22.1

18.7

6

9

14

8mm-1/2

PJOD-8-04

8

49.5

23.8

18.7

6.4

15.12

17

12mm-1/2

PJOD-12-04

12

55.1

23.8

22.8

9.7

15.12

22
