316Lステンレス鋼製PNV型高圧ニードルバルブ

ホーム / 製品 / ステンレス鋼製ニードルバルブ / 316Lステンレス鋼製PNV型高圧ニードルバルブ

316Lステンレス鋼製PNV型高圧ニードルバルブ

このバルブは、正確で制御可能な流量調整を保証するために、本体、コア、ニードルロッドがすべて精密 CNC で機械加工および研磨されているのが特徴です。バルブロッド表面にも窒化処理を施し強度を高めています。バルブシールには PTFE、PCTFE、または金属シールリングが使用されます。バルブ本体キャビティには高精度研磨が施されており、流路が滑らかになり、媒体の流れの抵抗と沈降のリスクが軽減されます。外面も精密研磨されています。 PNV ニードル バルブは、高圧システムにおいて優れた耐圧性を示し、通常は 400 ~ 600 bar に耐えます。特定の顧客要件に合わせて高圧仕様をカスタマイズできるため、極端な条件下でも安全で信頼性の高い動作が保証されます。針状のコア設計により、微調整と正確な流量制御が可能になります。

  • 説明
  • お問い合わせ

説明

グレード/ASTM仕様

本体材質

SS316

1

ハンドル

SS304

2

止めねじ

SS304

3

ロックナット

SS304

4

パッキンボルト

SS316

5

パッキングランド

SS316

6

パッキンワッシャー

SS316

7

梱包

PTFE

8

ボンネット

SS316

9

ステム

SS316

10

V チップ

SS316 SS630/A564

ボールチップ

11

ストップピン

SS304

12

本体

SS316

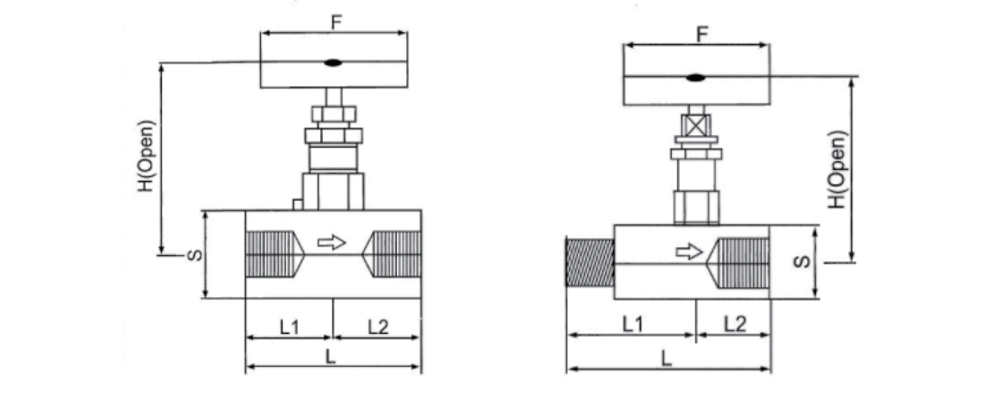

上記の寸法は参考用です。変更があった場合でも、それ以上の通知は行われません。刻印のない仕様については、カスタマイズについて工場にお問い合わせください。
