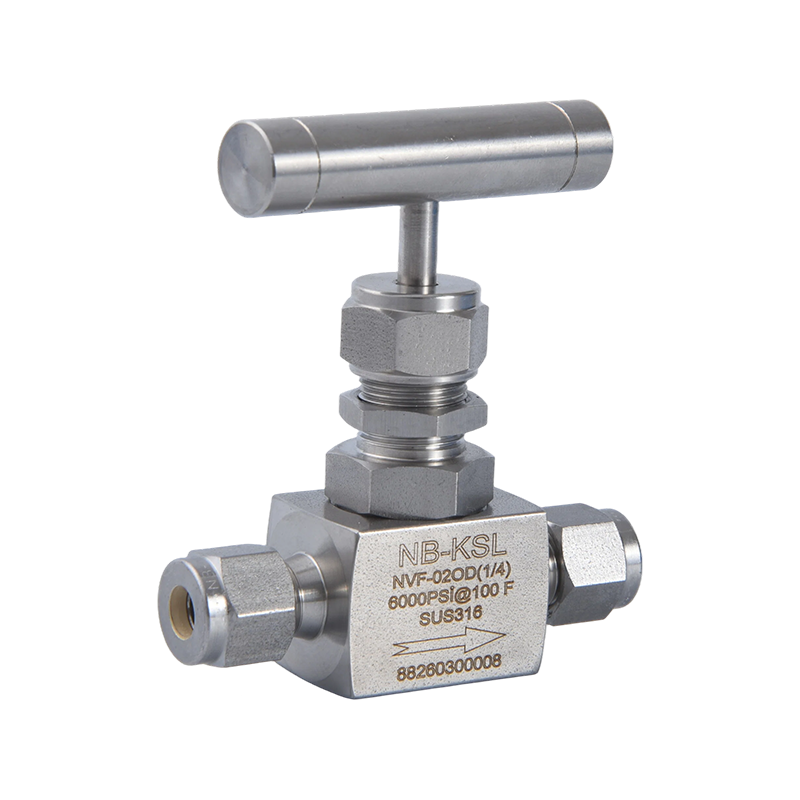

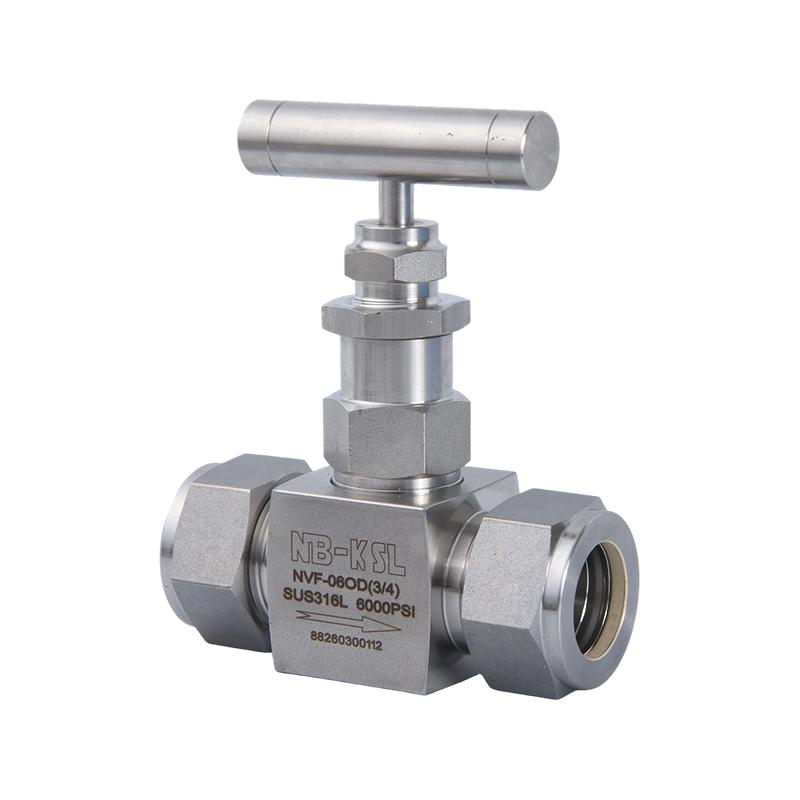

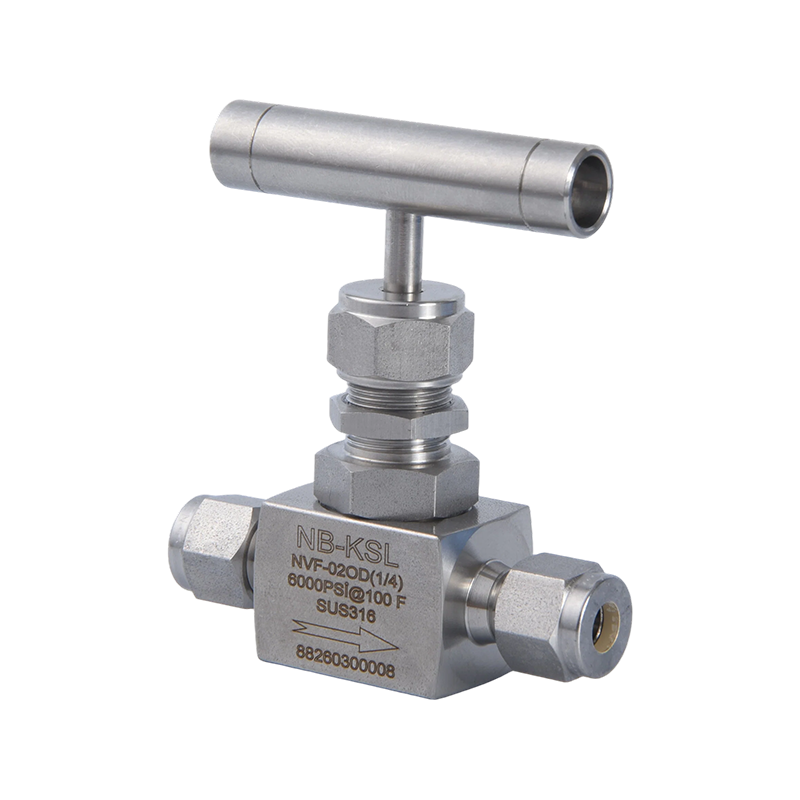

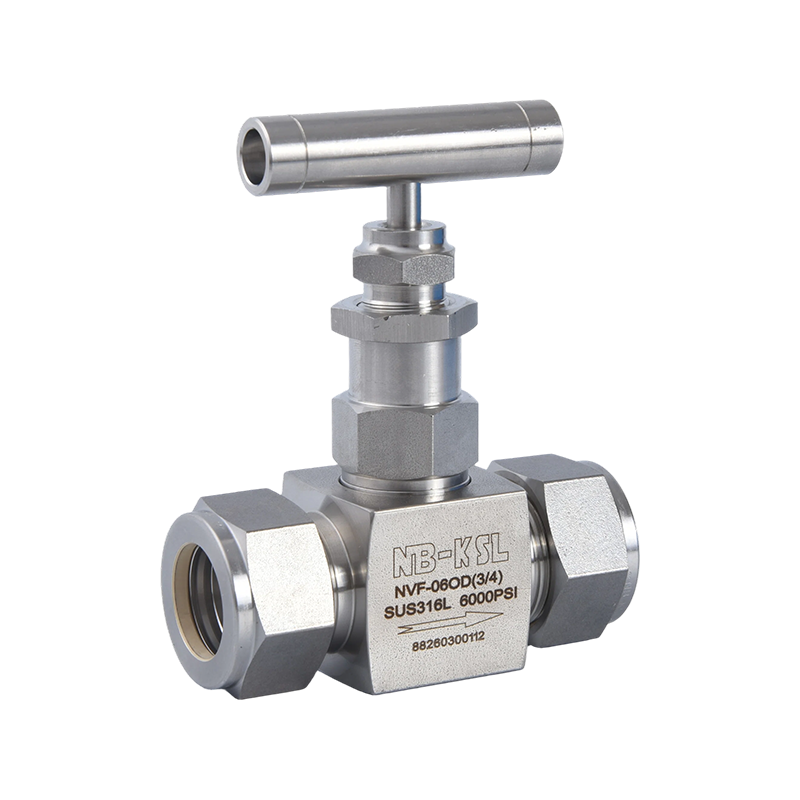

316L ステンレス鋼製ねじ込みボンネットニードルバルブ

ホーム / 製品 / ステンレス鋼製ニードルバルブ / 316L ステンレス鋼製ねじ込みボンネットニードルバルブ

316L ステンレス鋼製ねじ込みボンネットニードルバルブ

特長
最大10.000psig(689bar)の作動圧力。
温度定格は標準 PTFE パッキンで -65F ~ 450°F (-54℃ ~ 232°C)、オプションの Grafoil パッキングで最大 1200F(648°C) です。
ボディ材質は 316SS、炭素鋼、合金 400(モネル) からお選びいただけます。
最大10.000psig(689bar)の作動圧力。
100% 工場製テスレッド。

  • 説明
  • お問い合わせ

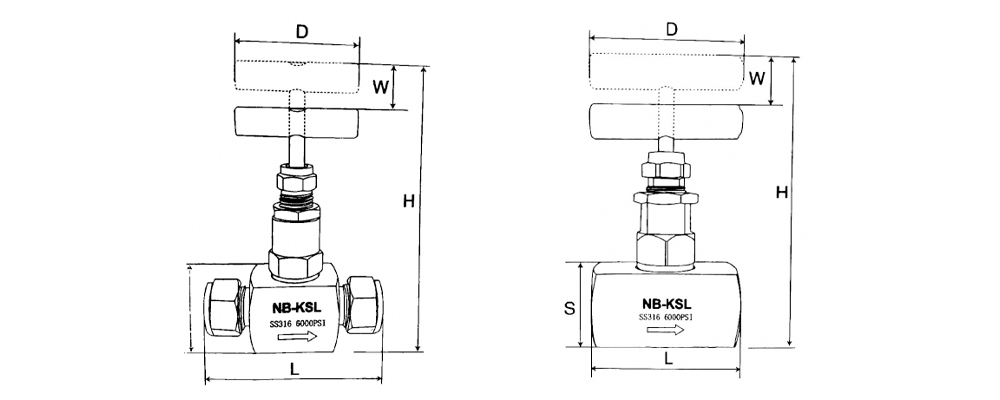

NVFハウジングコネクタピンバルブ寸法表

注文モデル

サイズ

D

D1

L

H

S

W

NVF-02OD

1/4LOK

55

3

65

74

22

4

NVF-03OD

3/8LOK

55

5

65

74

22

4

NVF-04OD

1/2LOK

55

6

77

96

28

5

NVF-06OD

3/4LOK

55

7

77

96

28

5

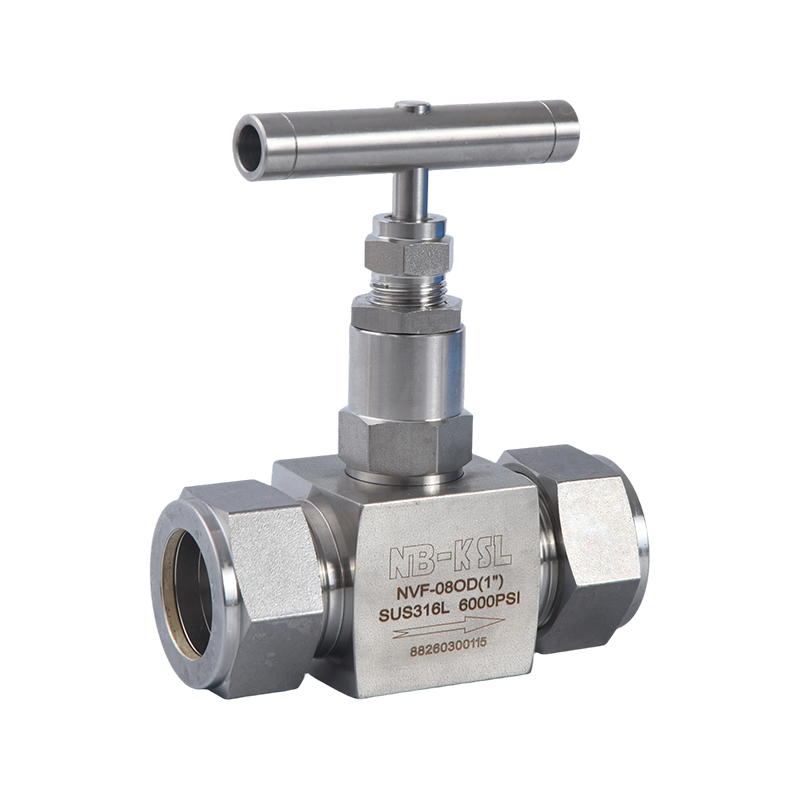

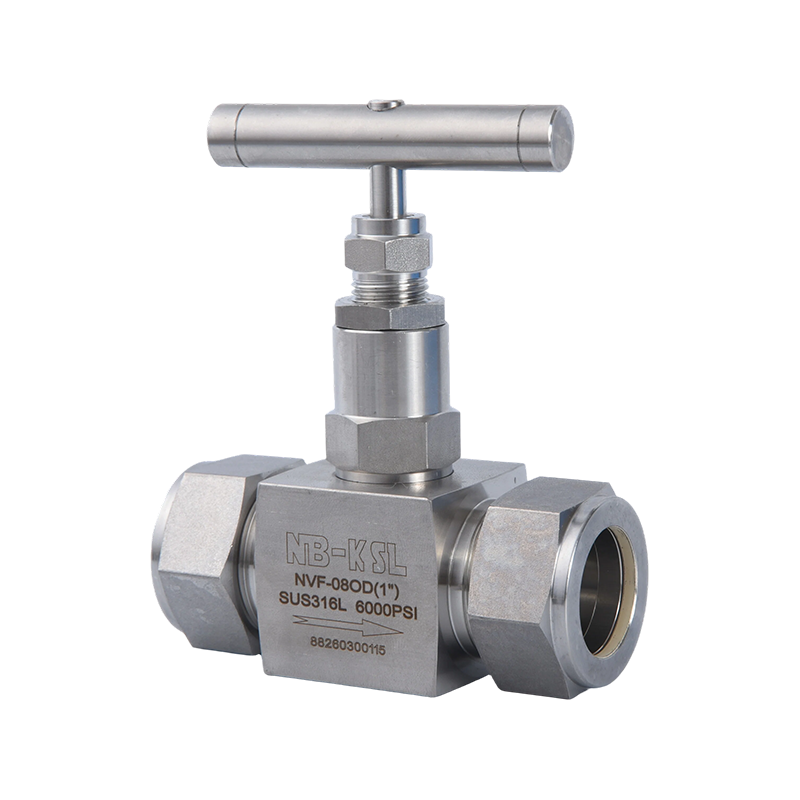

NVF-08OD

1"OK

75

10

96

119

40

7

NVF-6OD

6mmLOK

55

3

65

74

22

4

NVF-8OD

8mmLOK

55

4

65

74

22

4

NVF-10OD

10mmLOK

55

5

65

74

22

4

NVF-12OD

12mmLOK

55

6

77

96

28

5

NVF-14OD

14mmLOK

55

7

77

96

28

5

NVF-16OD

16mmLOK

55

7

77

96

28

5

NVF-18OD

18mmLOK

55

7

77

96

28

5

NVF-20OD

20mmLOK

75

10

92

117

38

7

NVF-22OD

22mmLOK

75

10

92

117

38

7

NVF-25OD

25mmLOK

75

10

96

119

40

7

NVFねじ接続ニードルバルブ寸法表

注文モデル

P

D

D1

L

H

S

W

NVF-02F

1/4

55

5

55

74

22

4

NVF-02M

1/4

55

5

55

74

22

4

NVF-03F

3/8

55

5

55

74

22

4

NVF-03M

3/8

55

5

55

74

22

4

NVF-04F

1/2

55

6

65

96

28

5

NVF-04M

1/2

55

6

65

96

28

5

NVF-06F

3/4

75

10

71

117

38

7

NVF-08F

1"

75

10

71

119

40

7


NVF ネジ式ニードルバルブ 外形寸法表

注文モデル

P

D

D1

L

H

S

W

NVF-10W

10mm

55

5

108

74

22

4

NVF-12W

12mm

55

6

122

96

28

5

NVF-14W

14mm

55

6

122

96

28

5

上記のサイズデータは参考値です。変更があった場合には別途通知されません。仕様が示されていない場合は、カスタマイズについて工場にお問い合わせください。
