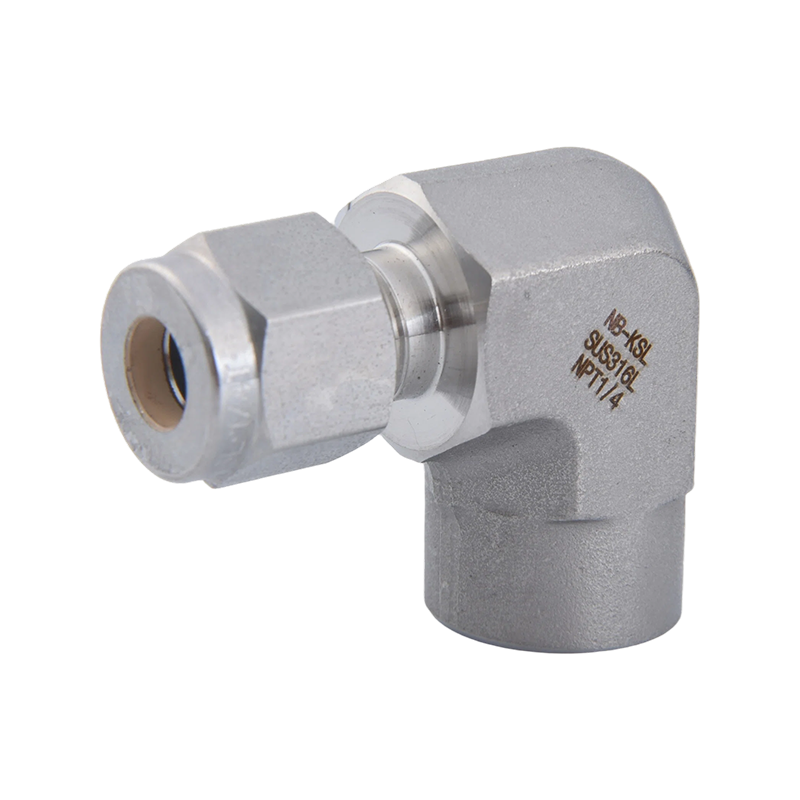

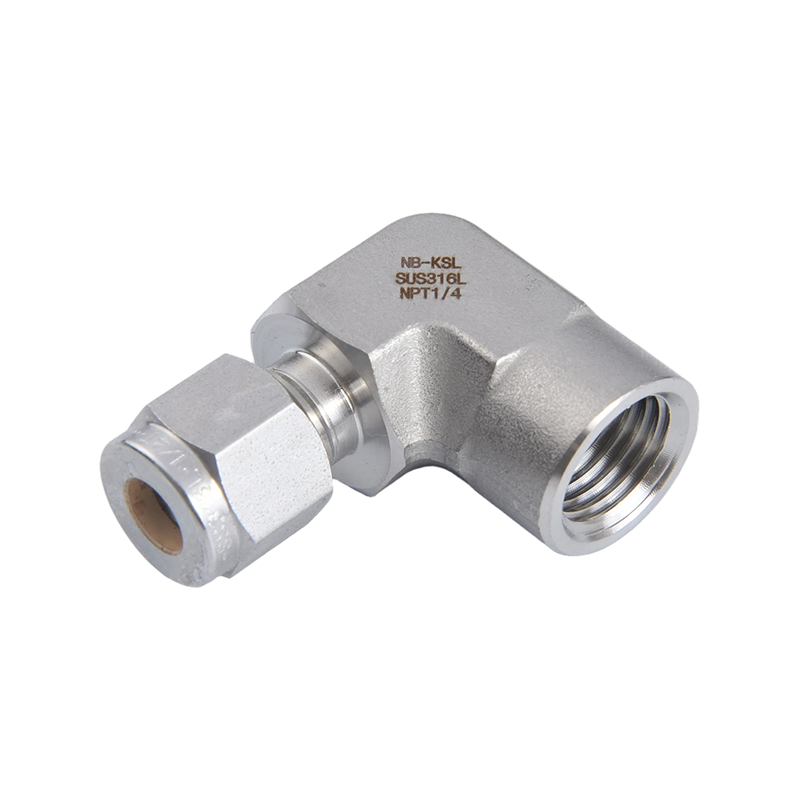

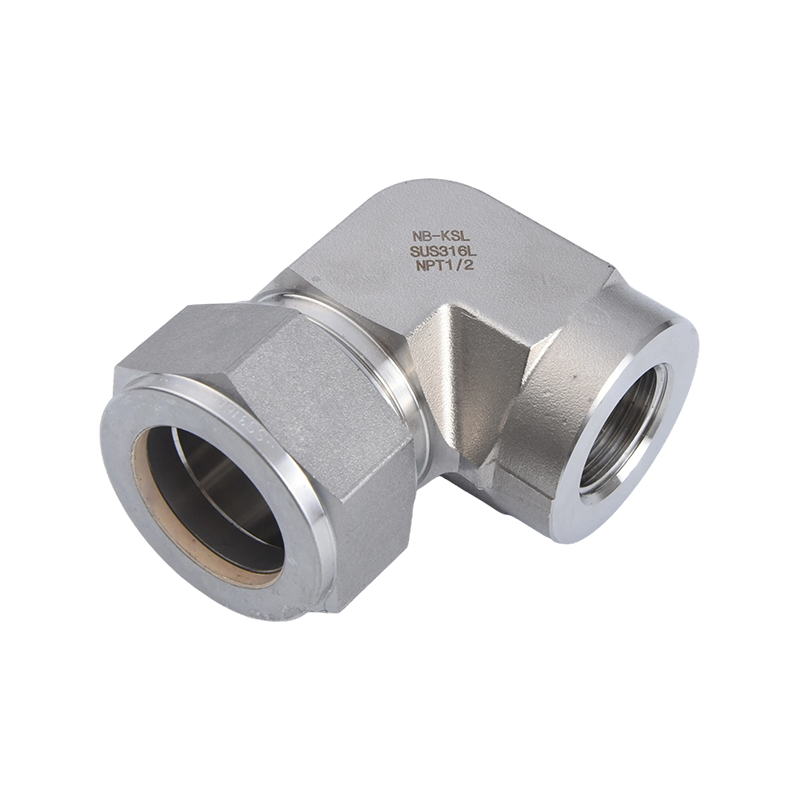

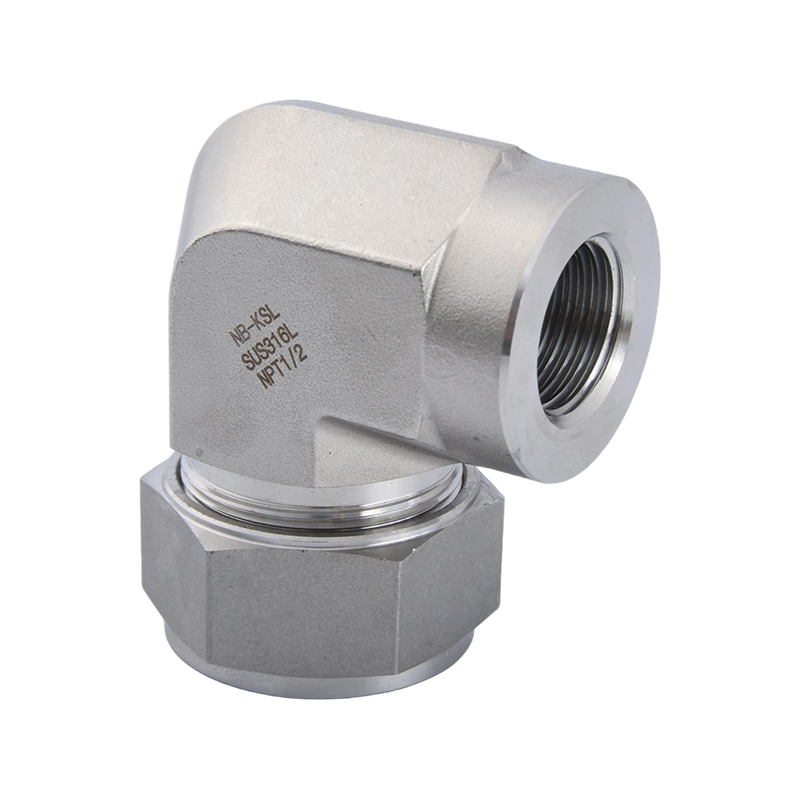

コンプレッション継手めねじエルボ

この製品は、高品質の 316L オーステナイト系ステンレス鋼で作られており、高度なフェルール タイプのメカニカル シール設計が組み込まれており、高圧、高温、腐食性の高い環境でも優れたシール性能と機械的安定性を維持できます。通常の 304 ステンレス鋼と比較して、316L ステンレス鋼は耐食性が高く、特に酸性、アルカリ性、塩分環境下で長期間にわたって安定した性能を維持します。精密加工されたワンピース本体構造を特徴とし、フロントフェルール、リアフェルール、ロックナットと組み合わせて完全な接続システムを形成します。コネクタ本体は高精度 CNC で機械加工されており、滑らかな内部流路を形成しています。フロントフェルールは主にシール機能を提供し、取り付け時の軸方向の圧縮を通じてパイプ表面との緊密な金属間の接触を形成し、信頼性の高いシールを実現します。後部のフェルールは主に機械的なサポートとロックを提供し、パイプをしっかりと固定し、接続の耐振動性を向上させます。

  • 説明
  • お問い合わせ

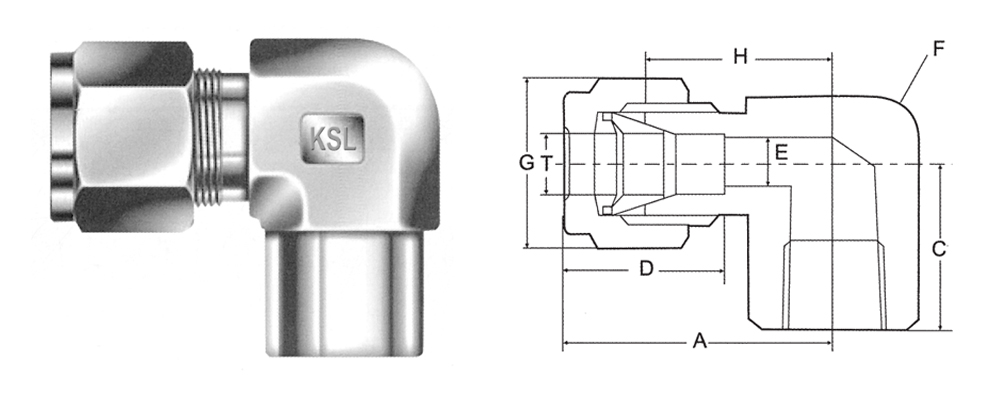

女性の肘

(メートル法)

カタログ番号

Tチューブ外径

PT-NPT 雄管サイズ

A

C

D

E

E2

F

G

H

FE-6-1

6

1/8

27.4

19.1

15.8

4.8

8

15

14

19.6

FE-6-2

6

1/4

30.2

22.4

15.8

4.8

11

17

14

22.4

FE-6-3

6

3/8

31.7

22.4

15.8

4.8

15

21

14

23.9

FE-6-4

6

1/2

35.3

28.5

15.8

4.8

18.5

28

14

27.5

FE-8-1

8

1/8

28.7

19.1

16.7

6.4

8

15

16

21

FE-8-2

8

1/4

30.1

22.4

16.7

6.4

11

17

16

23

FE-8-3

8

3/8

31.7

22.4

16.7

6.4

15

21

16

24

FE-8-4

8

1/2

35.7

28.5

16.7

6.4

18.5

28

16

27.5

FE-10-1

10

1/8

31.6

21

19.6

7.9

8

17

19

24

FE-10-2

10

1/4

31.6

22.4

19.6

7.9

11

17

19

24

FE-10-3

10

3/8

32.6

22.4

19.6

7.9

15

21

19

25

FE-10-4

10

1/2

36.1

28.5

19.6

7.9

18.5

28

19

28.5

FE-12-1

12

1/8

36.7

22.4

23.8

9.5

8

21

22

25.9

FE-12-2

12

1/4

36.7

22.4

23.8

9.5

11

21

22

25.9

FE-12-3

12

3/8

36.7

22.4

23.8

9.5

15

21

22

25.9

FE-12-4

12

1/2

39.3

28.5

23.8

9.5

18.5

28

22

28.5

FE-12-6

12

3/4

42.8

33.5

23.8

9.5

21.8

32

22

32

FE-14-3

14

3/8

38.8

28

24.8

11.1

15

24

27

28

FE-14-4

14

1/2

39.3

28.5

24.8

11.1

18.5

28

27

28.5

FE-14-6

14

3/4

42.8

33.5

24.8

11.1

21.8

32

27

32

FE-15-3

15

3/8

38.4

28

24.4

11.9

15

24

27

28

FE-15-4

15

1/2

38.9

28.5

24.4

11.9

18.5

28

27

28.5

FE-15-6

15

3/4

42.4

33.5

24.4

11.9

21.8

32

27

32

FE-16-3

16

3/8

38.4

28

24.4

12.7

12.7

24

27

28

FE-16-4

16

1/2

38.9

28.5

24.4

12.7

18.5

28

27

28.5

FE-16-6

16

3/4

42.4

33.5

24.4

12.7

21.8

32

27

32

FE-18-3

18

3/8

39.3

25.4

24.8

15.1

15

28

30

28.5

FE-18-4

18

1/2

39.3

28.4

24.8

15.1

18.5

28

30

28.5

FE-18-6

18

3/4

42.8

33.5

24.8

15.1

21.8

32

30

32

FE-20-4

20

1/2

43

33.5

25.5

15.9

18.5

32

32

32.5

FE-20-6

20

3/4

43

33.5

25.5

15.9

21.8

32

32

32.5

FE-22-4

22

1/2

43

33.5

25.5

18.3

18.5

32

32

32.5

FE-22-6

22

3/4

43

33.5

25.5

18.3

21.8

32

32

32.5

FE-25-4

25

1/2

47.7

35

31.7

21.8

18.5

34.5

38

35

FE-25-6

25

3/4

47.7

35

31.7

21.8

21.8

34.5

38

35


(分数)

FE-02-1

1/4

1/8

27.4

19.1

15.8

4.8

8

15

14

19.6

FE-02-2

1/4

1/4

30.2

22.4

15.8

4.8

11

17

14

22.4

FE-02-3

1/4

3/8

30.2

23.9

15.8

4.8

15

21

14

22.4

FE-02-4

1/4

1/2

36.3

27.5

15.8

4.8

18.5

28

14

28.5

FE-03-1

3/8

1/8

30.7

19.8

19.6

7.1

8

17

17

23.1

FE-03-2

3/8

1/4

31.6

22.4

19.6

7.1

11

17

17

24

FE-03-3

3/8

3/8

32.6

22.4

19.6

7.1

15

21

17

25

FE-03-4

3/8

1/2

36.1

28.5

19.6

7.1

18.5

28

17

28.5

FE-04-1

1/2

1/8

36.1

22.4

23.4

10.4

8

21

22

25.9

FE-04-2

1/2

1/4

36.1

22.4

23.4

10.4

11

21

22

25.9

FE-04-3

1/2

3/8

36.1

22.4

23.4

10.4

15

21

22

25.9

FE-04-4

1/2

1/2

38.7

28.5

23.4

10.4

18.5

28

22

28.5

FE-04-6

1/2

3/4

42.2

33.5

23.4

10.4

21.8

32

22

32

FE-05-6

5/8

1/2

42.4

33.5

24.4

12.7

21.8

32

27

32

FE-06-4

3/4

3/4

38.9

28.4

24.4

15.7

18.5

28

30

28.5

FE-06-6

3/4

3/4

42.4

33.5

24.4

15.7

21.8

32

30

32

FE-08-6

1"

3/4

47.7

35

31.7

22.4

22.4

34.5

38

35
