SR2 シリーズ ステンレス製中流量圧力調整器

ホーム / 製品 / ステンレス製圧力調整器 / SR2 シリーズ ステンレス製中流量圧力調整器

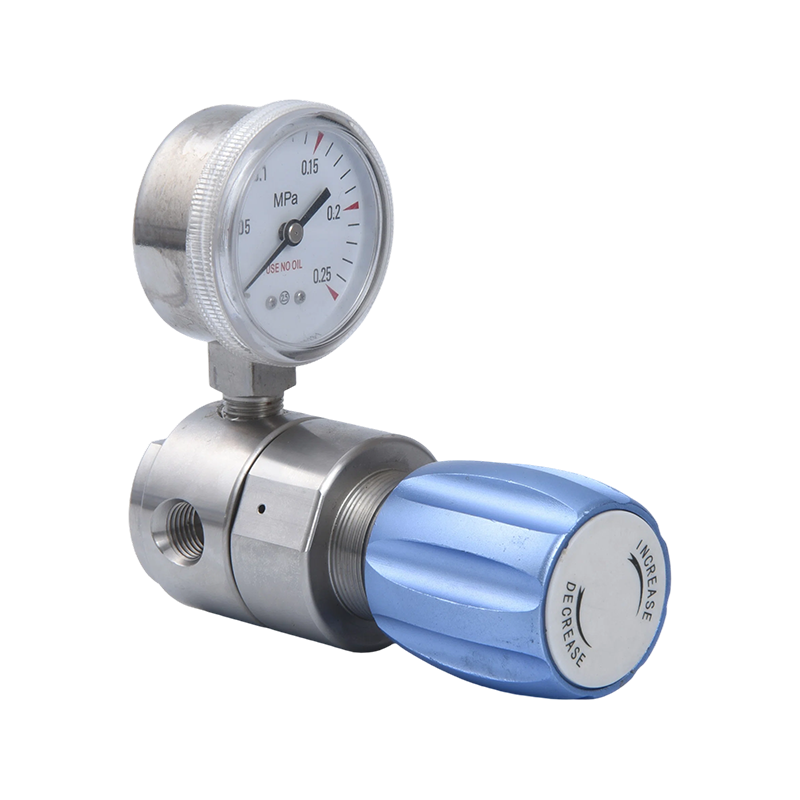

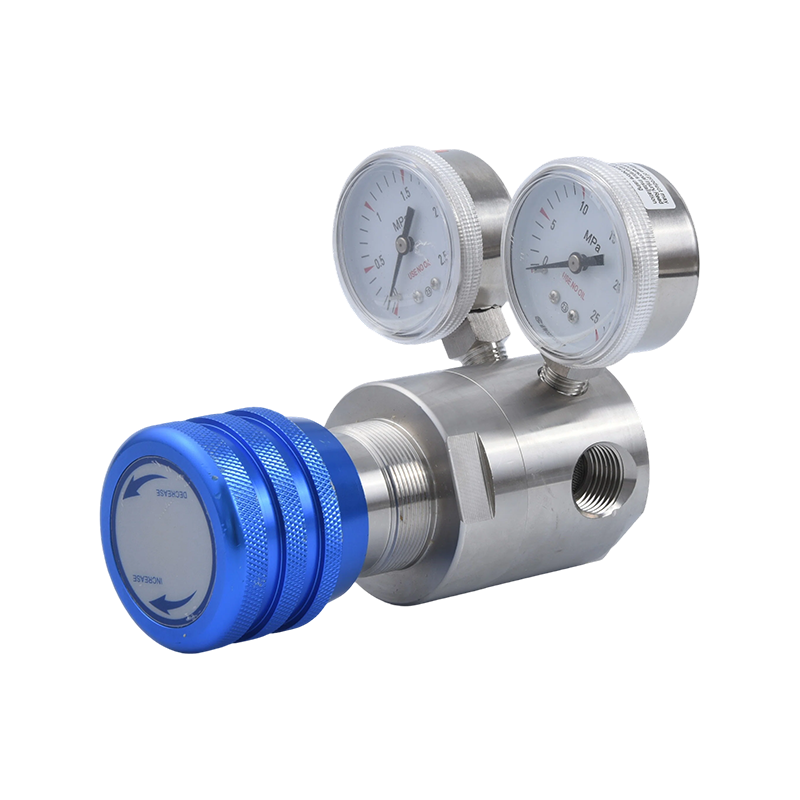

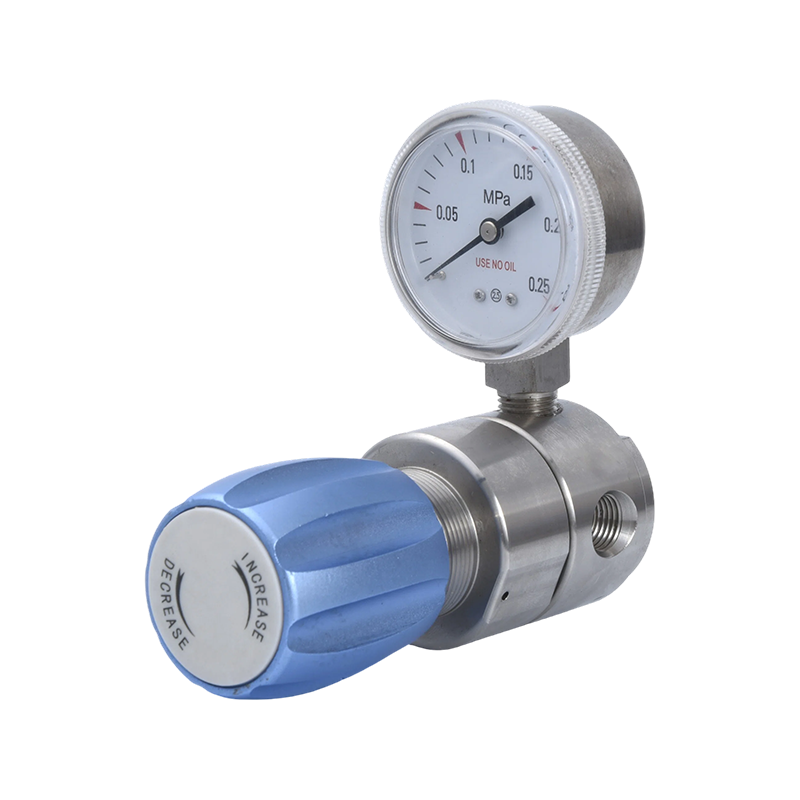

SR2 シリーズ ステンレス製中流量圧力調整器

SR2 は、中程度の流量を必要とするガス システム向けに特別に設計された最適化された内部フロー チャネルを通じて 1.1 の CV 値を達成します。また、電気メッキされた 316L ステンレス鋼の本体とトップ カバーを備えた 1 段ダイヤフラム構造を採用しており、標準ガスまたは特殊ガスを供給する際に二次汚染が発生しないことを保証します。その堅牢な 1.6kg 構造は、高流量で優れた機械的衝撃耐性を提供し、入口ポートと出口ポートの仕様は 1/2 インチ NPT(F) を含むさまざまな形式で選択できるため、システムの適応性が大幅に向上します。コアのダイヤフラム センサーは高感度で、リアルタイムのフィードバックと圧力変動の迅速な補償を提供するため、適度な流れの安定性が必要とされる半導体、発電所、炭鉱などの産業環境に広く適用できます。

  • 説明
  • お問い合わせ

シリーズ

ボディポート

入口圧力

出口圧力

ゲージ

インレットコネクタ

コンセントコネクタ

オプション

SR2

B

D

H

G

02

02

P

SR2L

(316L)

SR2B

(電気銅めっき)

A
B
G
J
M
Q

C:4000psi
D:3000psi
F:500psi

G:0-250psi
H:0-125psi
1:0-100psi
K:0-50psi
L:0-25psi
Q:30'HgVac-30psi
S:30"HgVac-60psi
T:30"HgVac-100psi
U:30"HgVac-200psi

G:MPa表

P: psi/バーテーブル

W:圧力計なし

02:3/8"NPT(F)

03:3/8"NPT(M)

04:1/2"NPT(F)

05:1/2NPT(M)

12: 3/8 インチカードスリーブコネクタ

13: 1/2 インチカードスリーブコネクタ

他の形式のコネクタも選択可能です

02:3/8"NPT(F)

03:3/8"NPT(M)

04:12「NPT(F)」

05:12「NPT(男)」

12: 3/8 インチカードスリーブコネクタ

13: 1/2 インチカードスリーブコネクタ

他の形式のコネクタも選択可能です

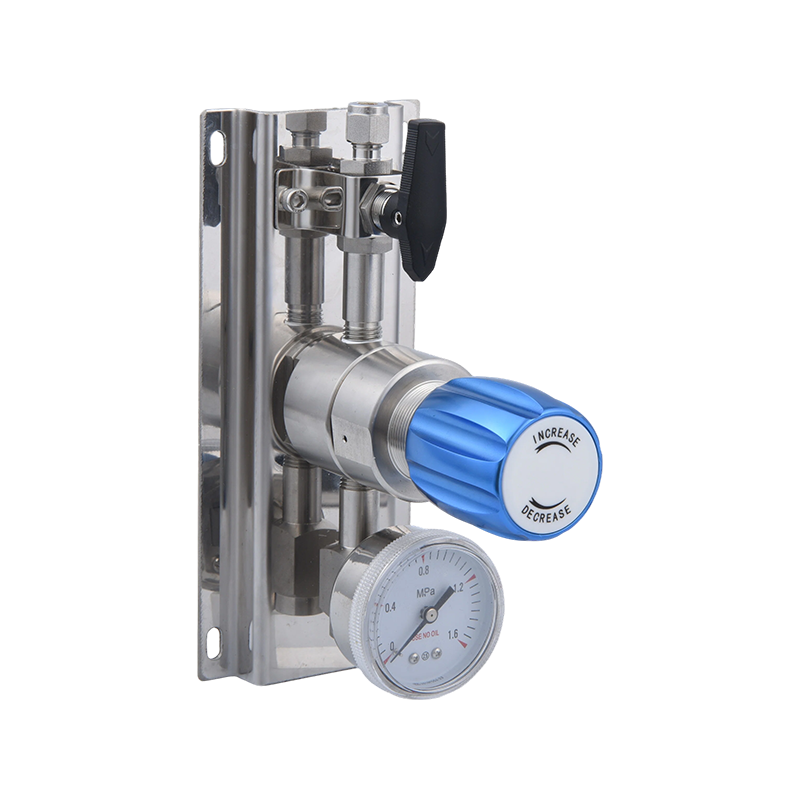

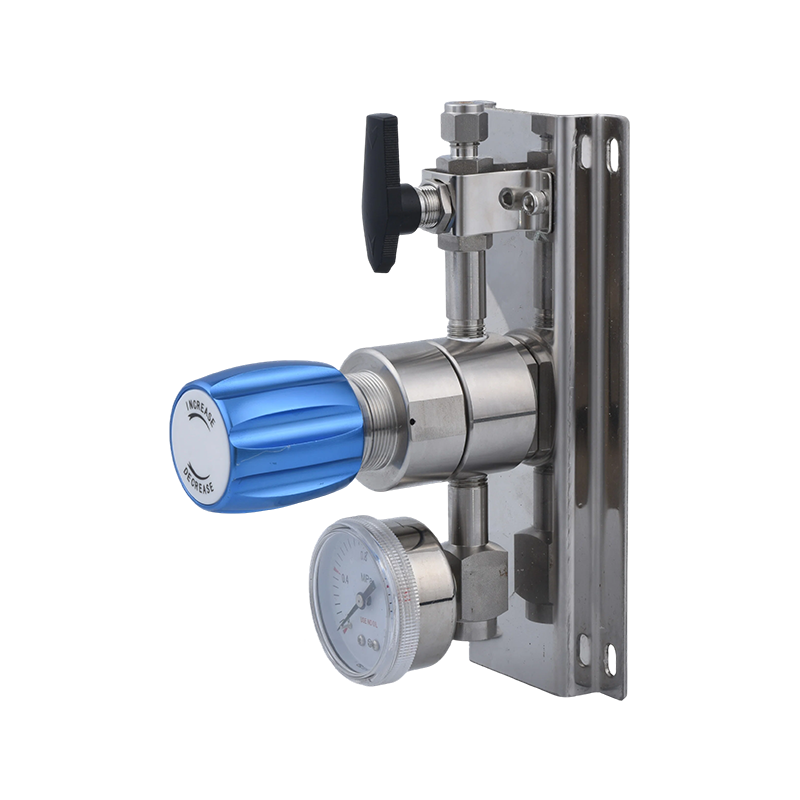

P:パネル取り付け

R:安全弁
